PUV-3090RX-UEA UHD+ HDMI over HDBaseT3 Receiver with analogue audio I/O, USB 2.0 pathway & LAN (18Gbps, 4K@60Hz 4:4:4, 8-bit, HDR)

Logga in för att se priser och lagerstatus.

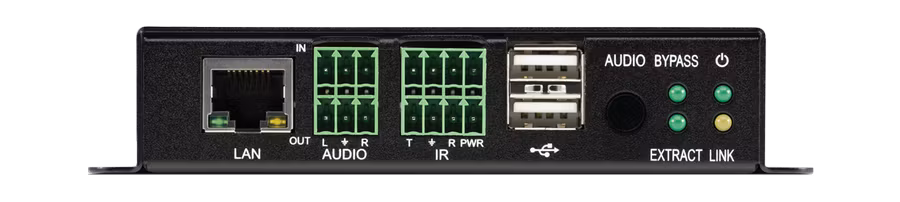

PUV-3090RX-UEA

The PUV-3090RX-UEA Receiver is part of a new generation of HDBaseT 3.0 technology and supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT.

It is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet (LAN serving) and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet.

USB connectivity allows extension of USB signals, ideal for uses such as KVM (keyboard and mouse).

For added flexibility, this Receiver supports Selectable HDMI audio extraction/analogue audio bypass functionality and a local HDMI output for monitoring.

This product is ideal for any scenario which needs uncompressed video and audio over distance, such as medical equipment, conference rooms, education, residential, and more.

Compatible Transmitter required.

Features:

  • Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
  • HDMI input and output with 3D & 4K video support (18Gbps)
  • HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product
  • Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through)
  • Supports analogue audio and optical audio pass-through.
  • Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
  • Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

Specifications:

Inputs
1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data]
1x HDMI [1x HDMI local input Uncompressed AV and Data]
1x USB Micro [1x Service Port Propriety Data]
1x RJ45 [1x LAN Serving]
1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]
1x Phoenix (4 pin) [1x RS-232 HDBaseT pathway]
1x Phoenix (4 pin) [1x Shared IR I/O]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output]
1x Phoenix (4 pin) [1x Shared IR I/O]
2x USB Type A [2x USB pathway Propriety Data]

POE PSU:
PoH
Dimensions
128mm [W] x 112mm [D] x 25mm [H]
Net Weight
390g
Gross Weight
600g
