PUV-1350PL-TXWP

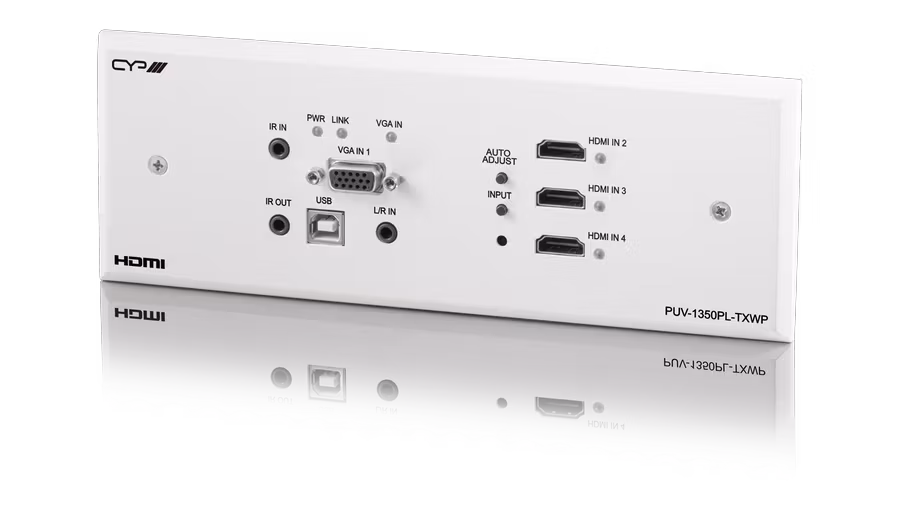

The PUV-1350PL-TXWP Wallplate HDBaseT Transmitter is a HDMI/VGA switch which allows uncompressed HDMI and VGA signals to be transmitted over a Single CAT5e/6/7 cable. This wallplate forms part of the PUV-1350PL-kit which also includes the PUV-1350PLA-RX and the CR-TG2, together they offer a flexible AV and USB extension system reaching up to 35m when sending 4K timings (60m up to 1080p).
Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. An input button on the face of the transmitter provides the option of quick, single button press, manual input selections when needed.
Features
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant

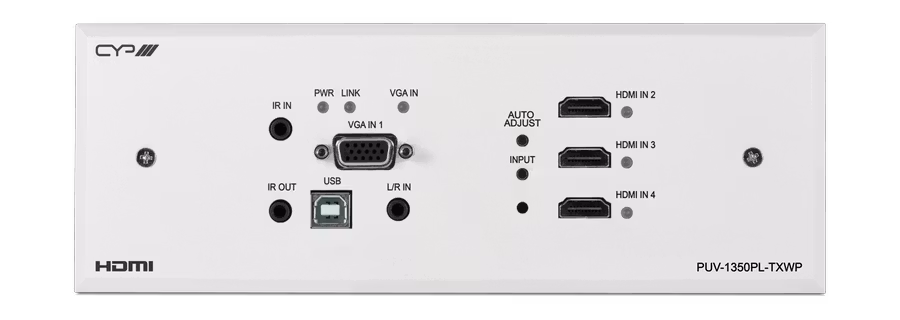

- 3 HDMI inputs & 1 VGA input with 3.5mm mini-jack audio input
- Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
- Supports VGA input resolutions up to WUXGA (RB)
- HDBaseT extension supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources to 4K@30Hz (4:4:4, 8-bit)
- Analog stereo audio may be embedded with VGA or DVI/HDMI sources
- HDBaseT extends video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 35m/115ft at 4K when using Cat.6A/7 (up to 60m @ 1080p 8bit 4:4:4)
- HDBaseT feature support: HD Video and Audio, control extension (IR, USB 2.0), and PoH
- Supports CEC bypass
- Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream
- Supports manual input selection or automatic input selection with hot plug detection

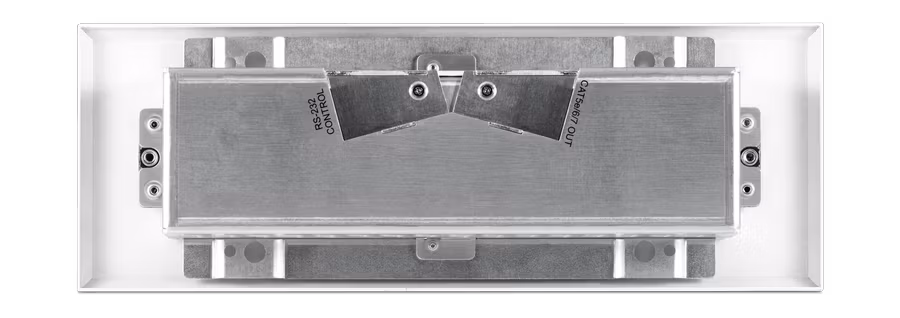

- Wall plate’s back box is designed for EU or UK three-gang sized enclosures with a UK 3-gang style faceplate
- The transmitter is powered via PoH from the receiver and the Control Keypad is powered directly by the transmitter
- The transmitter is controlled by the receiver, or via front panel buttons
Specifications:
| Inputs | 3x HDMI [3x HDMI Uncompressed AV and Data] 1x 15pin Dsub [1x VGA RGBHV] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] 1x USB Type B [1x USB data Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] |
| Outputs | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] 1x RJ45 [1x RS-232 Propriety Data] |
| POE PSU: | PoH |
| Dimensions | 225mm [W] x 81mm [D] x 46mm [H] |
| Net Weight | 350g |
