HDMI/ USB-C/ DP/ VGA över HDBaseT switch och sändare, 40 m

Logga in för att se priser och lagerstatus.

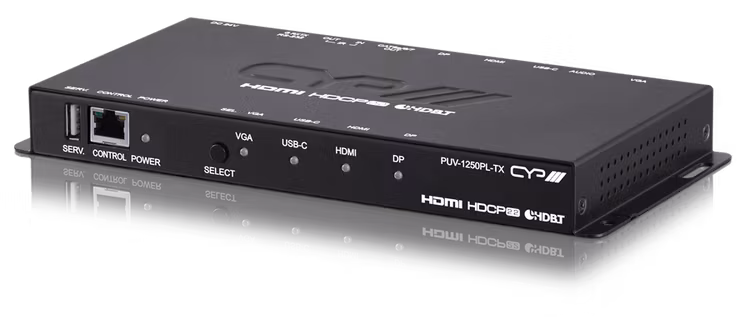

PUV-1250PL-TX

Sändaren PUV-1250PL-TX gör det möjligt att skicka bland annat video ( upp till och med 4K (4K@24-30Hz 4:4:4, 4K@60Hz 4:2:0)), ljud, USB-C, Displayport, VGA och Power over HDBaseT upp till 40 meter till lämplig mottagare som t.ex. PUV-1210PL-RX.


The PUV-1250PL-TX is a Multi-Format HDBaseT™ Extender designed to provide a flexible solution for educational and corporate environments.

Featuring HDMI, USB-C, DisplayPort & VGA inputs with support for 4K (4K@24-30Hz 4:4:4, 4K@60Hz 4:2:0), the PUV-1250PL-TX offers a wide variety of connectivity and switching options for any presentation space. 4K signals beyond HDBaseT bandwidth are automatically converted to ensure a signal is always received at the RX.

Auto-switching is operational across all digital video inputs ensuring the active source will always be displayed. EDID & HDCP settings can be adjusted from the WebGUI plus signal event automation allows CEC commands to be sent to turn on connected screens once an active source is detected. The USB-C input provides power (up to 60W) to any connected device, and the HDBaseT output provides PoH (Power over HDBaseT) to connected compatible receivers such as the PUV-1210PL-RX.

Control is provided via the front panel, WebGUI, Telnet and RS232.


Features:

  • HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically converted to 1080p.
  • HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
  • HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs
  • Integrated auto-switching across all digital video inputs
  • Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
  • Signal event automation using CEC commands
  • Comprehensive EDID & HDCP management
  • USB Type-C port provides power (up to 60W) or charge to any compatible device

Specifications:

Inputs
1x 15pin Dsub [1x VGA RGBHV]
1x USB-C [1x USB-C / Thunderbolt]
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Display Port [1x Display Port Uncompressed AV]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x Local RS-232]
1x Phoenix (3 pin) [1x Remote RS-232]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Port Propriety Data]
Outputs

1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU:
24V/3.75A
Dimensions
231mm [W] x 115mm [D] x 25mm [H]
Net Weight
666g
Gross Weight
1016g
