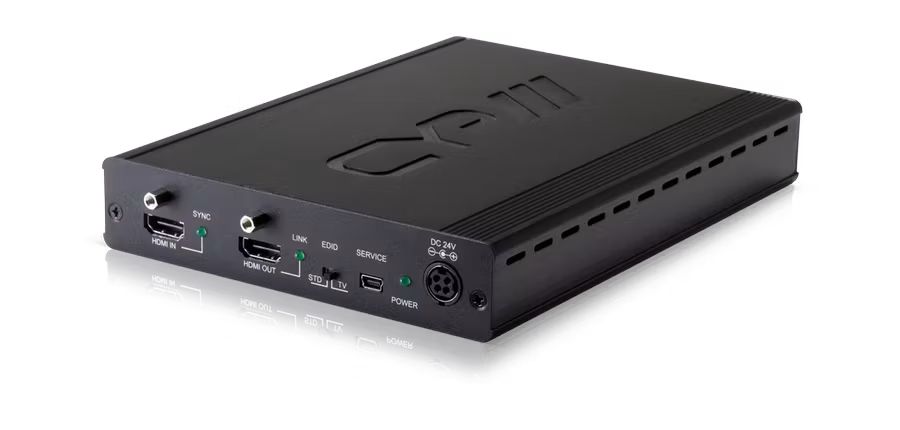

PU-1H3HBTPL

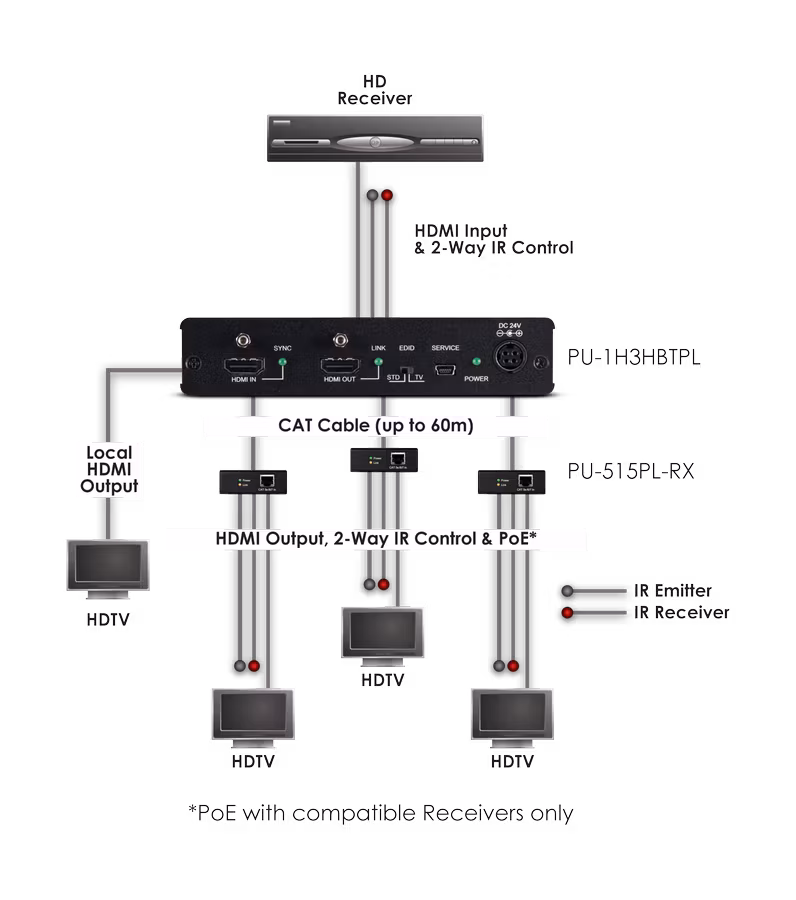

PU-1H3HBTPL splittern tar 1 HDMI signal och distribuerar ut den på 3 HDBaseT LITE kontakter plus 1 "bypass" HDMI kontakt. HDBaseT LITE standarden gör det möjligt att skicka okomprimerad HDMI, IR och RS-232 över en kabel upp till 60 meter. Om det skulle behövas så kan man, genom "bypass" kontakten, länka vidare till ytterligare HDBaseT splitters för att distribuera HDMI signalerna till ytterligare skärmar.
Denna splitter stödjer även så kallad PoC, Power over Cable ( Även känd som Power over Ethernet), teknik. På grund av detta så rekommenderar CYP och vi att man använder sig av PU-515PL-RX mottagare för att få ut full funktionalitet ur systemet.
?The PU-1H3HBTPL enables a single HDMI source input to be distributed to 3 HDBaseT™ Lite outputs. The HDBaseT™ Lite outputs allow uncompressed distribution of HDMI, and IR signals over a Single CAT5e/6/7 cable up to lengths of 60m. Perfect for both residential and commercial AV installations, the PU-1H3HBTPL can distribute HDMI signals to 3 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to more screens.
PU-515PL-RX receivers are recommended to utilise the full functionality of the HDBaseT™ LITE with PoC outputs of this device.
Supports all v1.4 HDMI resolutions plus 4k
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports HDCP repeating and CEC functions
Supports 1080p distances up to 60 meters through CAT5e/6 cables
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports HDMI and IR
Supports 3D signals
Supports PoC (power over cable) providing power for the receivers
Supports 4K/2K & 4K UHD - CAT5e/6 = 35m & CAT6a/7 = 40m
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
3x RJ45 [7x HDBaseT Lite PoC HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU:24V/2.7A
Dimensions:145mm [W] x 200mm [D] x 30mm [H]
Net Weight:580g
Gross Weight:720g
PU-515PL-RX receivers are recommended to utilise the full functionality of the HDBaseT™ LITE with PoC outputs of this device.
Features:
Supports all v1.4 HDMI resolutions plus 4k
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports HDCP repeating and CEC functions
Supports 1080p distances up to 60 meters through CAT5e/6 cables
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports HDMI and IR
Supports 3D signals
Supports PoC (power over cable) providing power for the receivers
Supports 4K/2K & 4K UHD - CAT5e/6 = 35m & CAT6a/7 = 40m
Specifications:
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
3x RJ45 [7x HDBaseT Lite PoC HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU:24V/2.7A
Dimensions:145mm [W] x 200mm [D] x 30mm [H]
Net Weight:580g
Gross Weight:720g
