PUV-2010RXWP
Med PUV-2010RXWP kommer nu CYPs nya Slimline serie av HDBaseT sändare och mottagare.
Med fullt stöd för 4KUHD + 4K2K, HDBaseT 2.0, HDCP 2.2, OAR(Optical Audio Return), USB, LAN, PoH(Power over HDBaseT) och upp till 100 meter räckvidd med Cat6a/7 kablage så är dessa en utav de mest mångsidiga mottagarna ur CYPs sortiment.
???The PUV-2010RXWP UK Wall Plate Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT™ 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
This system also allows the connection of any USB host, enabling a USB connection to 2 USB ports, giving the PU-2010RXWP Receiver the ability to act as a USB hub.

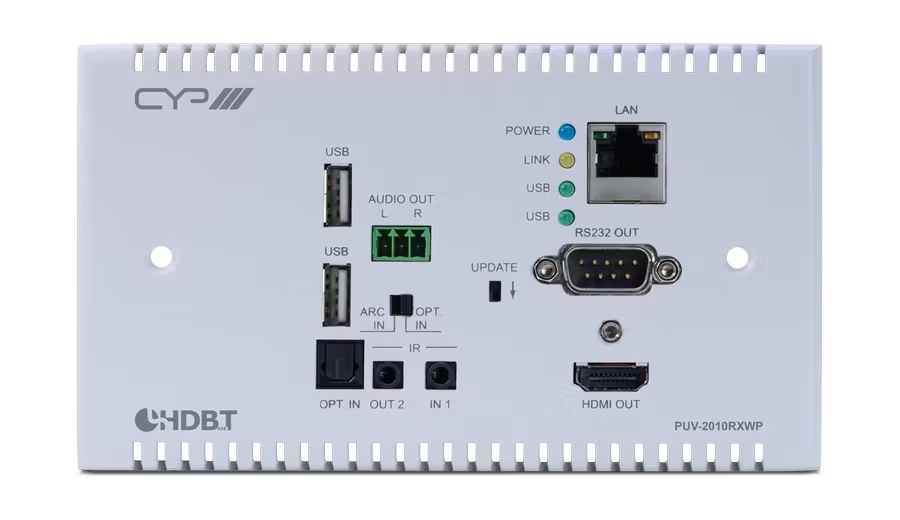

This wall plate variant of the PUV-2010RX receiver enables seamless integration into a standard UK double-gang back box.
Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
HDCP 2.2, HDMI and DVI compatible
HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical audio return (OAR)
Supports optical sampling rate up to 48kHz
Audio return channel (ARC)
Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
Receiver features 2 USB 2.0 ports

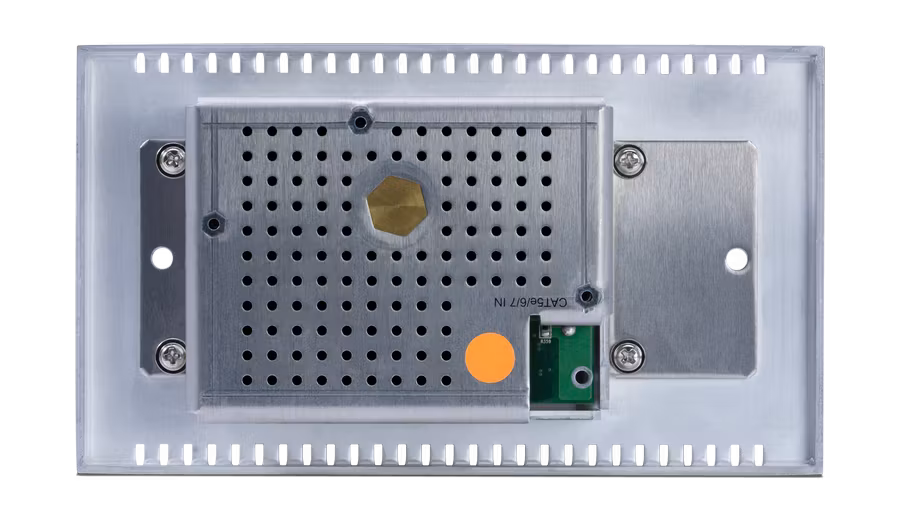

Fits in a standard UK standard double-gang back-box
This system also allows the connection of any USB host, enabling a USB connection to 2 USB ports, giving the PU-2010RXWP Receiver the ability to act as a USB hub.
This wall plate variant of the PUV-2010RX receiver enables seamless integration into a standard UK double-gang back box.
Features:
Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
HDCP 2.2, HDMI and DVI compatible
HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical audio return (OAR)
Supports optical sampling rate up to 48kHz
Audio return channel (ARC)
Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
Receiver features 2 USB 2.0 ports
Fits in a standard UK standard double-gang back-box
Specifications:
Input: | 1x RJ45 [1x HDBaseT 2.0 HDMI & Propriety Data] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] |
Output: | 1x HDMI [1x HDMi Uncompressed AV and Data] 1x USB Type A [1x USB Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x Phoenix (3 pin) [1x Stereo (L/R) Audio Output] 1x 9pin Dsub [1x RS-232 Data] |
PSU: | PoH |
Dimensions: | 90mm [W] x 156mm [D] x 42mm [H] |
Net. Weight: | 285g |
Gross Weight: | 600g |
