PUV-POH

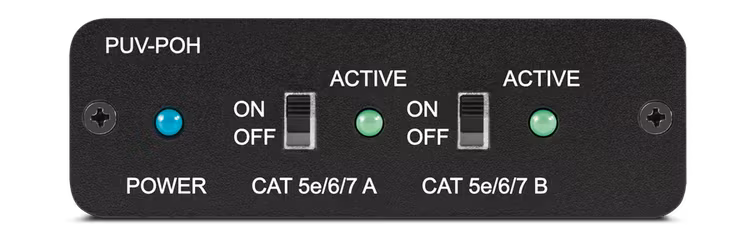

The PUV-POH is a power injector designed to send remote power to HDBaseT products. When placed inline between two HDBaseT products, it provides PoE/PoH power in either direction. Two power switches located on the side of the product allow you to decide whether the power is active for both channels and thus powering both the up and downstream connected HDBaseT products. The PUV-POH supports the full HDBaseT specification up to 10.2Gbps.

The PUV-POH can be used any HDBaseT product within the range that does not provide power, specifically, when used in conjunction with the PUV-1600 series.

Features:

  • HDCP 1.x and 2.2 compliant
  • Power supply for remote powering for powered devices on HDBaseTTM transmission lines
  • Power switches for incoming and outgoing line
  • Supports 4K/UHD signals
  • Low-profile, discreet enclosure

Specifications:

Inputs
1x RJ45 [1x HDBaseT PoH HDMI & Propriety Data]
Outputs
1x RJ45 [1x HDBaseT PoH HDMI & Propriety Data]
PSU:
48V / 0.83A
Dimensions
72mm [W] x 71mm [D] x 23mm [H]
Net Weight
130g
Gross Weight
1000g
