HDMI Equaliser med 4K support

Logga in för att se priser och lagerstatus.

RE-11HS-4K

Utgående modell, endast en kvar på lager.

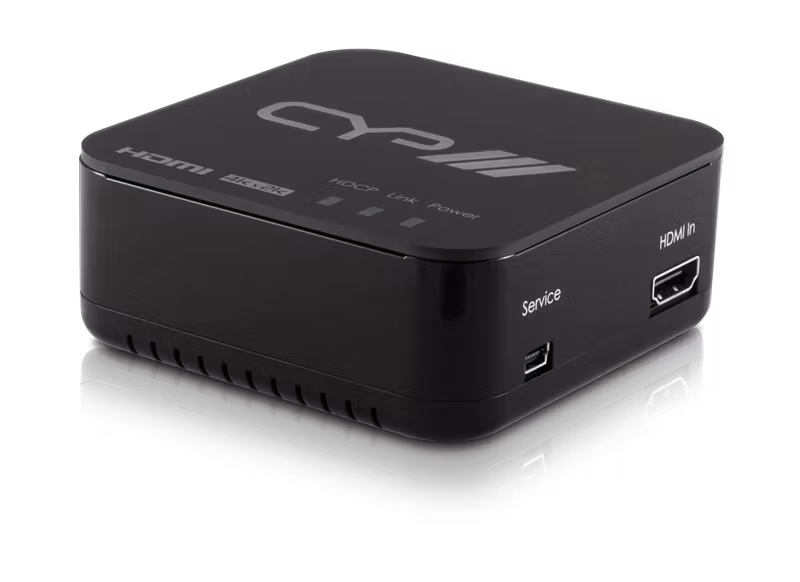

RE-11HS-4K är perfekt att placera i slutet av en HDMI kabel för att förstärka signalen och därmed förbättra HDMI signal kvalitén till skärmen. Den har också stöd för bland annat 4K upplösning, 3D signaler, "Deep Colour" och följer HDMI v1.4 standarden med en samplings rate på 192 kHz.



The RE-11HS-4K is perfect for placing at the end of a HDMI cable to boost the signal to improve the HDMI signal quality to the display. The RE-11HS-4K Equaliser uses v1.4 HDMI specifications, supporting 4K resolutions, 3D signals, and ‘Deep Colour’ together with High Definition Audio at 192KHz sampling rate.

Features:
v1.4 HDMI, HDCP 1.1 and DVI 1.0 compliant
HDMI to HDMI Equaliser with 4K resolution support
Resolutions Support : Output resolution follows Input. PC: VGA,SVGA,XGA,SXGA, UXGA (1600 x 1200) and WUXGA (1920x1200). HDTV: 480i, 576i, 480p, 576p, 720p, 1080i & 1080p + 1080P 24fps, 4K
High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
Corrects digital error and automatically provides equalisation where the input is Compensated, Clock / Phase Adjusted, and Jitter Eliminated
Supports maximum input and output HDMI cable lengths of up to 15 meters each @ 1080p/8-bit resolution, or 10 meters each at 1080p/12-bit resolution
Support xvYCC & CEC Bypass
Supports 3D signals

Specification:
Inputs:

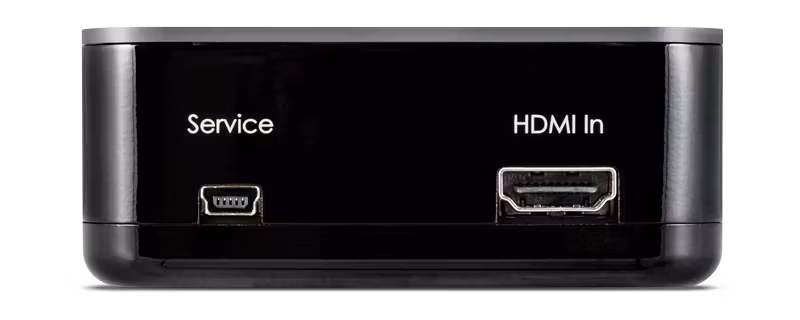

1x HDMI [1x HDMI Uncompressed AV and Data]
Outputs:1x HDMI [1x HDMI Uncompressed AV and Data]
PSU:5V/1.2A
Dimensions:85mm [W] x 85mm [D] x 35mm [H]
Net Weight:100g
Gross Weight:460g
