HDMI 4K UHD Repeater / Förstärkare, 6G

Logga in för att se priser och lagerstatus.

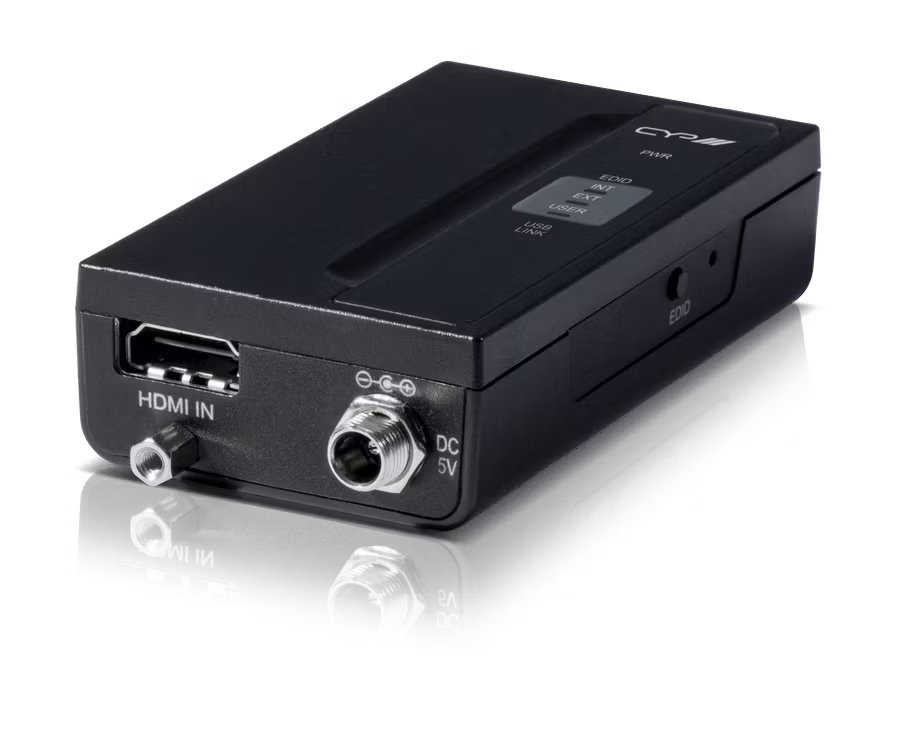

RE-101-4K22

RE-101-4K22 förstärker signalen på ingången och skickar sedan ut den på utgången.

Stöder HDCP 2.2 och DVI 1.0 standarder.

Stöder 3840x2160p @60Hz( 4:4:4, 8-bit ) och 4096x2160 @60hz ( 4:4:4, 8-bit ), det som kommer in kommer ut.

Klarar upp till 20m på båda sidor, och kan kompletteras med ytterligare 4 enheter för extrema längder.


??The RE-101-4K22 is designed to enhance and stabilize high-bandwidth HDMI signals, allowing the user to extend a UHD 4K, HDMI 2.2 signal an additional 5m whilst also providing the function of customized EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customized User EDID. The unit’s toggle switch and simple LED design allows the user to quickly switch between different configurations while viewing EDID status information.

Features:


HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0)
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
EDID selectable between internal, external and user custom EDID
PC based EDID management tool support via the Micro-USB port
LED display providing an easy view of the current EDID and unit status

Specification:


Input:
1x HDMI [1x HDMI Uncompressed AV and Data]
Output:
1x HDMI [1x HDMI Uncompressed AV and Data]
 :
 :
PSU:
5V/2.6A
Dimensions:
51mm [W] x 98mm [D] x 22mm [H]
Net. Weight:
71g
Gross Weight:
450g
