HDMI/ VGA/ Display Port Presentation Switch Lite

Logga in för att se priser och lagerstatus.


EL-5400-HBT är en presentations switch lämplig för t.ex. konferenslokaler eller liknande. Med DisplayPort, dubbla HDMI och VGA ingångar samt HDMI och HDBaseT Lite utgång få finns möjligheten för de flesta moderna källorna att koppla in sig.

Med HDBaseT Lite utgången så kan man dra en Cat5e/6/7 upp till 60 meter och där sätta t.ex. en PU-515PL-RX för att plocka ut HDMI.

?This HDMI/DisplayPort/VGA to HDMI Scaler with HDBaseT LITE Output is designed to switch and scale up to 5 AV inputs to simultaneous HDMI and HDBaseT LITE outputs at resolutions up to 1080p/WUXGA. The HDBaseT LITE output enables the user to send the signals up to 60m over a single CAT5e/6/7 cable and supports PoC (Power over Cable) to provide power to the connected HDBaseT LITE receiver (PU-515PL-RX or PU-515PL-WPRX). Additionally, this device offers 3 analogue Line level audio inputs, a switchable Microphone input and a Line level output. The microphone input features a 48V 'Phantom' power mode for use with professional microphones. The audio DSP engine provides auto-mixing and auto-gain control to mix or reduce the background audio in order to enhance the main audio source. The system can be controlled and easily configured via WebGUI, IR remote control or RS-232. This device is an ideal solution for presentation facilities within a classroom and/or conference room.


Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications

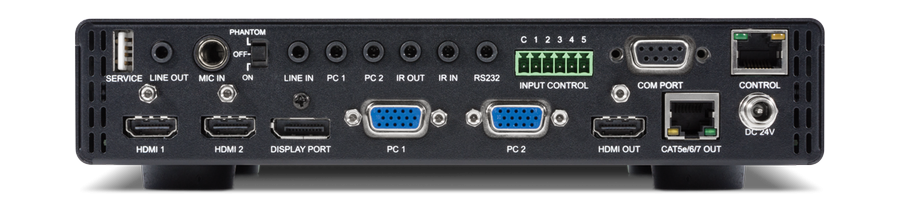

Supports multiple inputs: 2×HDMI, 2×VGA and 1×DisplayPort, 3×Unbalanced Audio, 1×MIC In (48V phantom selection)
Provides simultaneous HDMI and HDBaseT LITE outputs
Supports HDTV resolutions up to 1080p (VGA to WUXGA)
Audio DSP offers auto-mixing and auto-gain control for mixing or reducing background audio
Supports Internal EDID
Supports pass-through of PCM 2CH
Supports control via WebGUI, IR remote and RS-232
Supports IR In and IR Out to receive or transmit IR signal from compatible HDBaseT receiver with bi-directional RS-232 control
Input control provides direct input source selection


156mm [W] x 219mm [D] x 43mm [H]
Net Weight
Gross Weight
