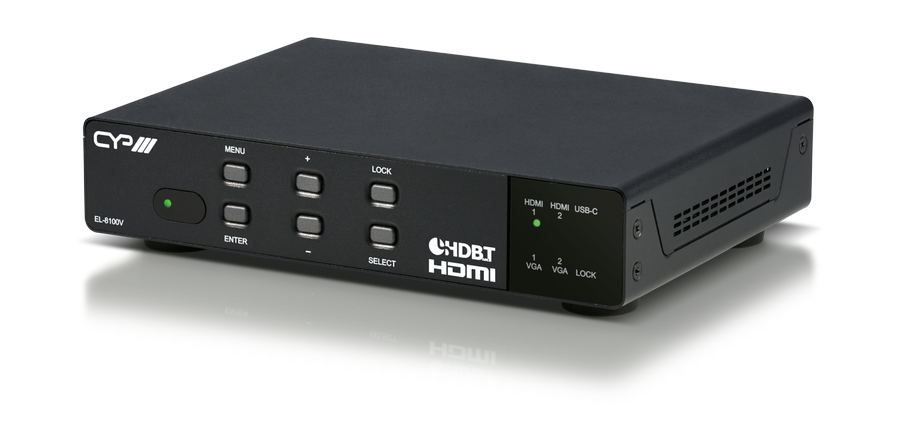

EL-8100V Advanced 4K Multi-Format to HDMI/HDBaseT Presentation Switch (with HDMI, USB-C and VGA inputs)

Logga in för att se priser och lagerstatus.

The EL-8100V 5 by 2 multi-format scaling switcher provides HDMI, USB-C, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic colour subsampling of 4K50/60 (4:4:4) sources to 4K50/60 (4:2:0). The VGA inputs support resolutions up to WUXGA.

The HDBaseT output provides a great solution to extend your audio and video up to 100 meters over a single run of Cat.6A cable as well as providing PoH power to compatible HDBaseT transmitters and receivers.

This unit contains an audio DSP engine with auto-mixer and auto-gain functionality, allowing for the microphone source to be mixed with the audio from one of the video sources with independent volume control over the microphone input included auto-ducking function.

This unit is an ideal solution for presentations in classrooms and conference rooms. Controllable via front panel controls with an OSD, WebGUI, Telnet, RS- 232, IR, and Trigger controls.

Features:

  • HDMI 2.0 and DVI 1.0 compliant
  • HDCP 1.x and 2.2 compliant
  • Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
  • HDBaseT output extends video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
  • HDBaseT feature support: HD Video & Audio, 100BaseT Ethernet, PoH(PSE), and Control (Bi-directional IR/RS-232 pass-through)
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C) and output (HDMI)
  • VGA input supports resolutions up to 1080p60/WUXGA (RB)
  • Supports pass-through of LPCM 2.0 digital audio
  • Supports audio embedding, de-embedding Microphone input supports 48V phantom power (optional)
  • Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input with auto-gain functionality and auto-ducking function
  • Comprehensive HDCP and EDID management
  • USB Type-C port provides up to 60W of power to connected devices
  • Trigger input connection supports direct input selection
  • IR remote control provides discrete input source selection

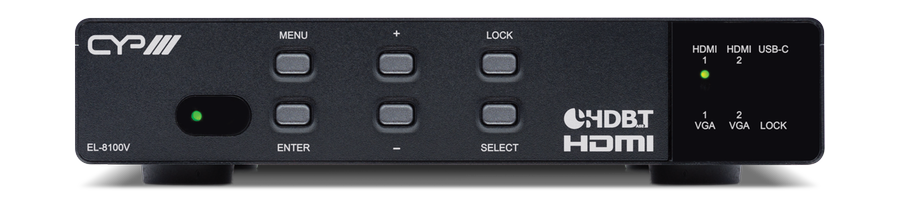

  • Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers

Specifications:

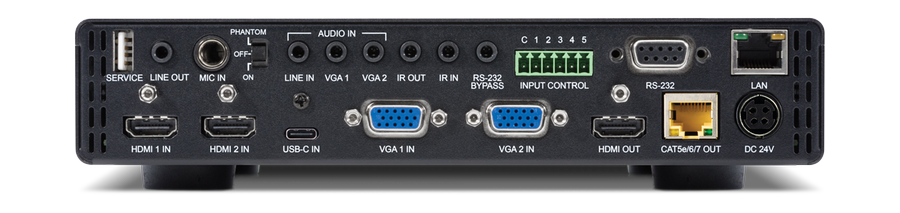

Inputs
2x HDMI [2x HDMI Uncompressed AV and Data]
1x USB-C [1x USBC USB-C / Thunderbolt]
2x 15pin Dsub [2x VGA RGBHV]
1x 6.35mm Stereo Jack [1x Microphone]
3x 3.5mm Stereo mini-jack [3x Analogue Stereo(L/R)]
1x Phoenix (6 pin) [1x Direct switching control port]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x LAN serving and IP Control IR Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x USB Type A [1x Service Port Propriety Data]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU:
24V/5A
Dimensions
215mm [W] x 160mm [D] x 43mm [H]
Net Weight
1320g
Gross Weight
1640g
