EL-5500
EL-5500 är en avancerad, rack monterbar, HDMI, VGA, Komposit och Komponent presentations switch. Du kan skala och byta mellan 8 olika ingångar till dess 2 HDMI utgångar med tillhörande ljudsignaler till skärmarnas "native" upplösning.
Kontroll över switchen sköts genom den medföljande fjärrkontroller, RS-232, över IP eller genom knapparna på fronten. Både digitalt och analogt stereo ljud stöds via en inbyggd DAC ( Digital to Analog Converter ) och ADC ( Analog to Digital Converter ) vilket erbjuder en flexibel lösning för ljud. EL-5500 är en perfekt lösning för varje situation där man behöver koppla in källor med olika kontakter till 2 HDMI skärmar.
The EL-5500 is an advanced rack mountable HDMI, VGA, Composite, and Component presentation switcher. This device can scale and switch input sources to it"s two HDMI outputs, with their associated audio signals to the native resolutions supported by the connected display. Control is via the IR remote, RS-232, IP, or via manual selection buttons. Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter). The EL-5500 is the perfect solution for any educational or commercial environment requiring integration of multiple sources and signal formats to two HDMI displays.
Feature:
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Supported Resolutions : HDTV: 480i to 1080p PC: VGA to WUXGA
Aspect Ratio Adjustment
Motion Adaptive De-interlace (3D)
Video Noise Reduction
Underscan / Overscan Selection
Picture Adjustment Settings
Specifications:

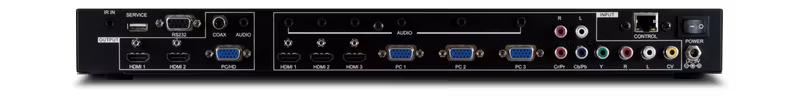

Inputs:
3x HDMI [3x HDMI Uncompressed AV and Data]
3x 15pin Dsub [3x VGA RGBHV]
6x 3.5mm Stereo mini-jack [6x Analogue Stereo(L/R)]
3x RCA [1x YPbPr Component / YCbCr Component]
1x RCA [1x Composite]
4x RCA [2x Analogue Stereo (L/R)]
1x RJ45 [1x IP Control]
1x 9pin Dsub [1x RS-232 Data]
1x USB Type A [1x Service Port - Propriety Data]
Outputs:
2x HDMI [2x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA - RGBHV / YPbPr Component / YCbCr Component]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x RCA [1x Coax Digital - 2 Channel LPCM]
PSU:5V/3A
Dimensions:433mm [W] x 180mm [D] x 44mm [H]
Net Weight:2140g
Gross Weight:2940g
