3-vägs HDMI switch för skrivbordet

Logga in för att se priser och lagerstatus.

EL-31TT-4K22

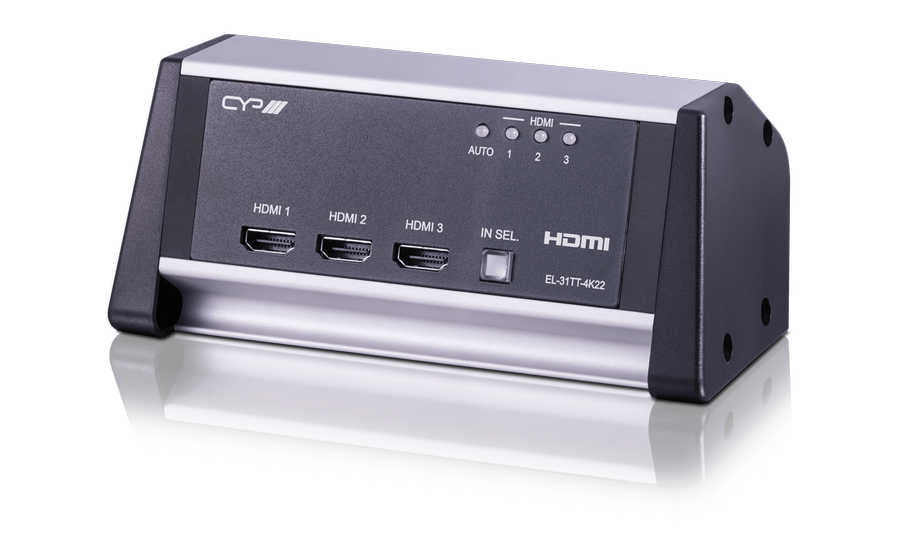

The EL-31TT-4K22 has been specially designed to be used in its tabletop enclosure or as part of a modular desk mounting solution, simplifing connectivity and switching requirements within the meeting room. Featuring 3 HDMI inputs and 1 HDMI output supports full 4K signals including full 6G 4K 60Hz and HDR signal as well as all form a bitstream audio and HDCP 2.2.

The kit includes, the switching module, tabletop enclosure and mounting clamp and whilst it can be used with any HDMI cable at its output it has been specifically tested with CYP's HDMI-AOC cable range so longer HDMI cabling can be used to ease the installation process.

Simple control is available from the units’ switch button and an auto switch mode, included for versatility, plus it has a rear RS-232 port for integration into wider corporate AV systems.

Features:

  • HDMI 2.0a and DVI 1.0 compatibility
  • HDCP 1.x and 2.2 compatible
  • Support full 6G 4K signals
  • 4K 60Hz 4:4:4, HDR and Dolby Vision compatible
  • Module, tabletop enclosure and mounting clamp included within the kit
  • Support 'Last Memory' auto switch functionality

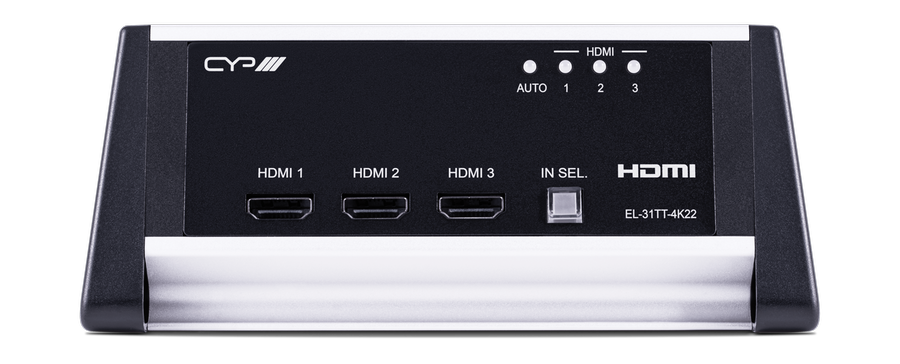

  • Back-lite LED input selection display

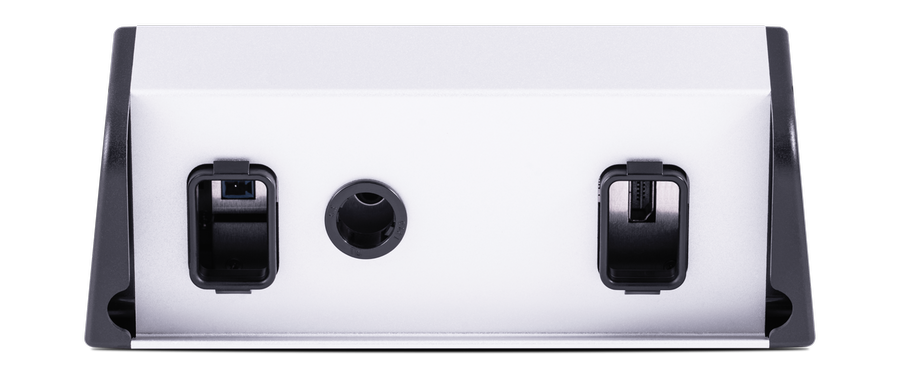

  • Rear RS-232 connection

Specifications:

Inputs
3x HDMI [3x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x RS-232]
Outputs
1x HDMI [1x Uncompressed AV and Data]
PSU:
5V/1.2A
Dimensions
125mm [W] x 55mm [D] x 40mm [H]
Net Weight
101g
Gross Weight
590g
