HDMI 2.0 / 3G-SDI Signal Analysator

Logga in för att se priser och lagerstatus.

500831

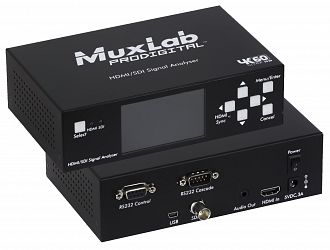

Muxlab 500831 är en portabel signalsanalysator för HDMI 2.0 och SD/HD/3G-SDI.

Man kan använda den enskilt eller tillsammans med en 500830 Signal Generator

This Signal Analyzer is a portable test tool that is able to analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, Integrator and installer.

The Signal Analyzer is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per change

Features
Portable Signal Analyzer – for autonomous operation anytime and anywhere!
Supports up to 5 hours of operation on a single change via an internal rechargeable Lithium-ion battery
Supports HDMI up to 4K/60 & 3D, and 3G-SDI
Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
Supports an HDMI cable test function
Displays AV signal characteristics
3” LCD panel for pattern preview & menu settings
Supports 7 audio sample rates
VU meter supported on LCD
Supports HDCP 2.2 & 1.4
Supports EDID management
Locally or remotely managed via RS232 or USB
Supports an RS232 cascade for management
Free Windows management software
