Kontrollbox för SDV-produkter, Matris, Videovägg

Logga in för att se priser och lagerstatus.


Här har vi en kontrollbox till SDV serien, med den i kombination med en eller flera SDV-FTX, SDV-FRX, SDV-FTRX och/eller SDV-CTRX blir det möjligt att skapa ett matris system där man kan välja vilken källa som skall gå till vilken skärm och man kan även konfigurera systemet till att vara en:
Multi-view (Picture in Picture)
(Quad) fyra-olika-källor-till-samma-bildskärm-system.

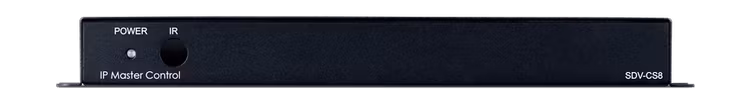

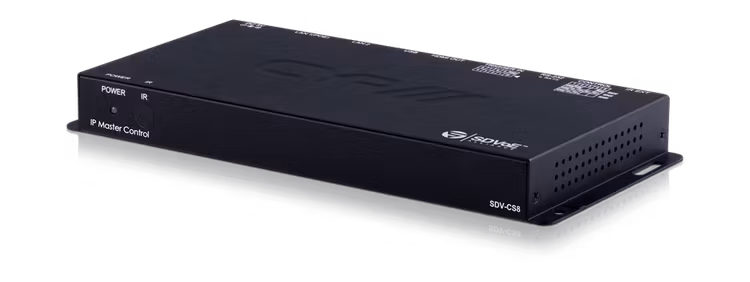

The SDV-CS8 is a powerful and flexible solution for controlling multiple SDVoE extenders within same network. The SDV-CS8 provides effortless configuration of the extenders (Transmitters, Receivers or Transceivers) to easily define and configure channel routing using the WebGUI. It is also possible to define and switch routes using customized groups or presets over multiple video zones.

Additionally, this unit supports controlling the matrix, video wall, and multiviewer modes of connected SDVoE extenders. Dependent on the scaler mode, this product supports instant switching between selected video transmitters. The settings of all connected Transmitter/Receiver units, including IP address, Subnet mask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by connecting an HDMI display and USB keyboard & mouse to the SDV-CS8. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a lecturn or table within a conference room or classroom environment. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.


  • Enables the management and configuration of multiple compatible SDVoE extenders through a single WebGUI
  • Control over matrix, video wall, and multi-viewer modes using WebGUI presets
  • Rapid Switching time between transmitters
  • Definable display groups
  • WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection
  • HDMI output displays the WebGUI and system status
  • Dual LAN ports enable control over the local network as well as independant access to the controller separate to the distribution network
  • Supports the use of a USB mouse and keyboard providing control of the WebGUI (Optional)
  • Can be powered directly by Power over Ethernet (PoE) when connected to an Ethernet switch that follows the 802.3af PoE standard
  • Trigger Control Keypad support for simple single-button preset activation
  • Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers


2x RJ45 [2x Individual Network IP]
1x Phoenix (3 pin) [1x RS-232]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (10 pin) [1x Trigger In (8)]
1x USB Type A [1x Service Port Propriety Data]

1x HDMI [1x HDMI Uncompressed AV and Data]
135mm [W] x 117mm [D] x 25mm [H]
Net Weight:
Gross Weight:
