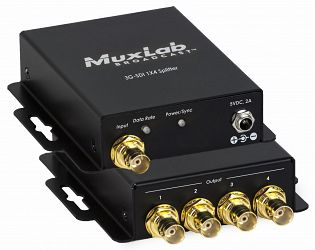

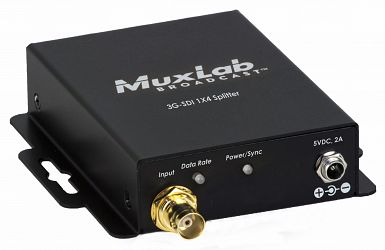

3G-SDI 1x4 Splitter, 1080p

Logga in för att se priser och lagerstatus.

500719

Muxlab 500719 är en splitter för SDI signaler. Splitten har 1 ingång och 4 utgångar och stödjer upplösningar upp till och med 1080p vid 60 Hz.

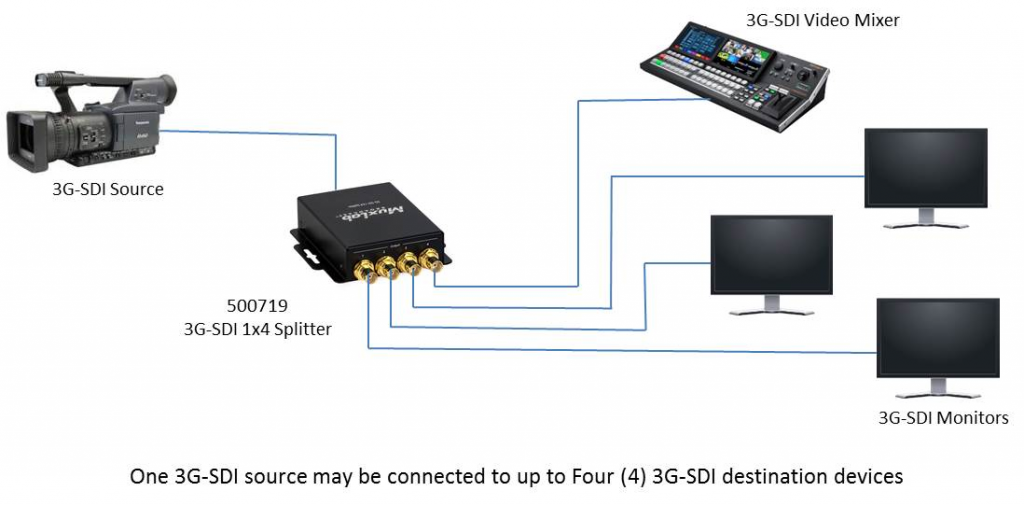

The 3G-SDI 1×4 Splitter (500719) allows one (1) 3G/HD/SD-SDI source to be distributed and amplified to up to four (4) 3G/HD/SD-SDI displays. The splitter supports up to 1080p video, including 480i (SD-SDI), 720p/1080i (HD-SDI), and 1080p (3G-SDI). The device automatically detects the 3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays.

Features


Distribute one 3G-SDI source to four displays
Supports up to 1080p @ 60Hz, including 3G/HD/SD-SDI
Automatically detects re-clocks and regenerates the 3G/HD/SD-SDI signal
LED diagnostic
