Analog Zonförstärkare 100W

Logga in för att se priser och lagerstatus.


Muxlab 500217 är en 100W Zon förstärkare för ljud som kan ta emot analoga eller digitala källor genom RCA, Toslink eller en 3.5mm stereo ingång.

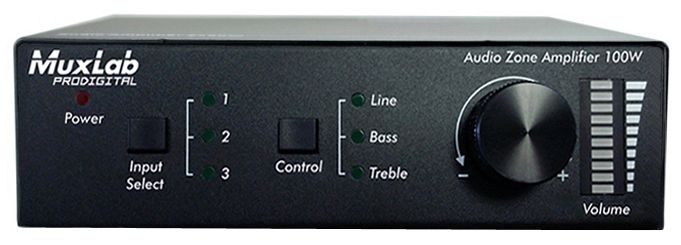

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via pushbuttons and a knob, and remotely via RS232, IR and an IP webserver interface.

The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8? speaker outputs or one 100W 4? speaker output (terminal block).

Two analog 2CH audio Inputs and one digital optical input
Supports 2x50 Watts into 8?, and 1x100 Watts (Bridge mode) into 4?
Cascadable allowing for chaining amplifiers
Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch (500210)
Compatible with MuxLab 70V transformer (500755-70V) to allow for longer distance connections and chaining of 70V speaker systems
Volume, Bass and Treble control, with mute
Controllable via pushbuttons, RS232, IR and IP webserver interface
