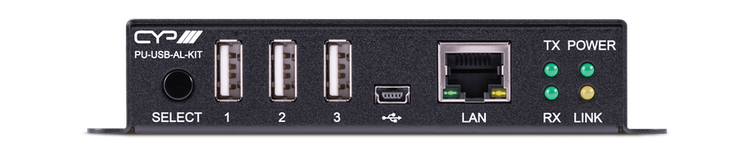

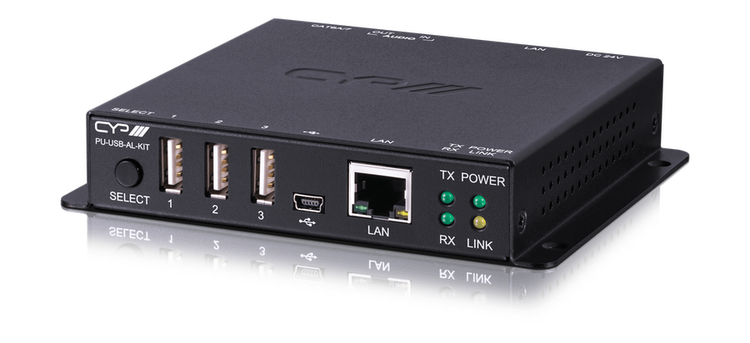

USB 2.0, Ljud och LAN över Single CAT (100m) Kit

Logga in för att se priser och lagerstatus.

PU-USB-AL-KIT

The PU-USB-AL-KIT Transceiver is a point-to-point signal extender for USB 2.0, LAN and Analogue Audio over CAT6/7 cables. Ideal for extending USB peripherals from the table in a conference room to wider video conferencing systems such as Zoom, Microsoft Teams and Skype for Business.

The solution is comprised of two PU-USB-AL units connected via CAT6/7 which may be extended up to 100m (330 feet). Bi-directional PoC (power over cable) is supported enabling either side of the system to provide power, perfect for managing power requirements within an installation.

Typically a system can support one USB host and up to 6 USB devices (3 on the transmitter side, and 3 on the receiver side). The USB host is automatically located by the device, alternatively, this can be selected via the front panel buttons.


Features:
  • USB 2.0, Analogue Audio & LAN extension up to 100m over CAT6/7
  • Supports auto-configurable USB port, capable of acting as either host or device
  • All USB device ports are active simultaneously, allowing for the connection of up to 6 USB 2.0 device when used in a point-to-point system
Specification:

Inputs
3x USB Type A [3x USB devices Propriety Data]
1x RJ45 [1x LAN Serving]
1x 3.5mm Stereo mini-jack [1x Analogue Audio Stereo(L/R)]
1x RJ45 [1x CAT data stream I/O Propriety Data]
Outputs

1x USB Type B [1x Host USB device Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]

PSU:
24V/2.7A
Dimensions
128mm [W] x 113mm [D] x 25mm [H]
Net Weight
367g
Gross Weight
1217g
