PUV-1350PL-KIT



The PUV-1350PL-KIT is ideal for classroom / education  & corporate applications thanks to its ability to provide HDMI video switching, system control, video extension and analogue audio amplification, and USB data. We have utilized our years of HDBaseT expertise to include USB data within an HDBaseT1 extender set (usually only possible with HDBaseT2) to allow KVM support, ideal for touch screen / interactive displays.

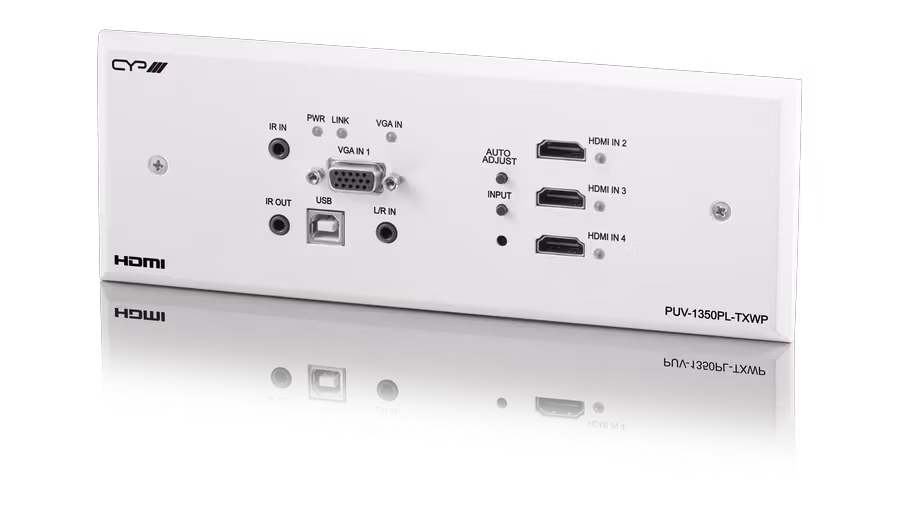

The wall plate transmitter caters for HDMI, VGA (with analogue audio) and USB (for KVM), as well as a scaler and control functions. The system consists of PUV-1350PL-TXWP Scaling Wall Plate HDBaseT Transmitter, PUV-1350PLA-RX HDBaseT Receiver and CR-TG2 keypad control.

The Transmitter can send high-definition uncompressed audio/video over a single cable up to a distance of 60 meters at 1080p. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and can be used with the associated 3.5mm audio input.

Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported by auto converting the signal to 4K@30Hz as required.

This system (Wall plate TX and control module) are powered by 48V PoH from the Receiver, which allows for greater flexibility in installations.

Signal management features, such as automatic switching based on input signal and hot plug detection, enable convenient hands-free operation. An input button on the face of the unit provides quick, single button press, manual input selection. Other functionality is controllable via front panel controls, WebGUI, Telnet, and RS-232. The simple to use CR-TG2 trigger keypad allows for additional control of the system.

For sound reinforcement, the receiver features analog audio de-embedding and a built-in 2x20 watt stereo amplifier.

Features

  • HDMI 2.0 and DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • 3 HDMI inputs and 1 VGA input with 3.5mm mini-jack audio input
  • 1 x HDMI output plus analogue stereo audio output
  • 20w per channel stereo amplifier built into the Receiver
  • Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • Supports VGA input resolutions up to WUXGA (RB)
  • Analogue stereo audio may be embedded with VGA or DVI/HDMI sources
  • HDBaseT extension supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources to 4K@30Hz (4:4:4, 8-bit)
  • HDBaseT extends video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 35m/115ft at 4K when using Cat.6A/7
  • HDBaseT feature support: HD Video and Audio, control extension (IR, USB 2.0), and PoH
  • Supports CEC bypass
  • Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream
  • Supports manual input selection or automatic input selection with hot plug detection
  • Customizable eight button control keypad
  • Basic signal event automation (via RS-232, IR, CEC, and Relay)
  • Wall plate’s back box is designed for EU or UK three-gang sized enclosures with a UK 3-gang style faceplate
  • The transmitter is powered via PoH from the receiver and the Control Keypad is powered directly by the transmitter
  • The receiver is controllable via front panel buttons with OSD, Control Keypad, WebGUI, Telnet, and RS-232
  • The transmitter is controlled by the receiver, or via front panel buttons

Specifications:

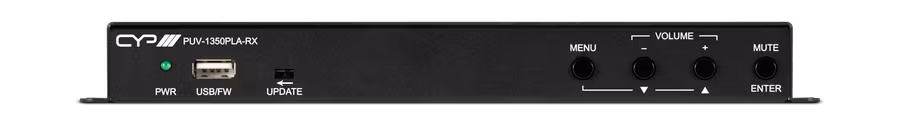

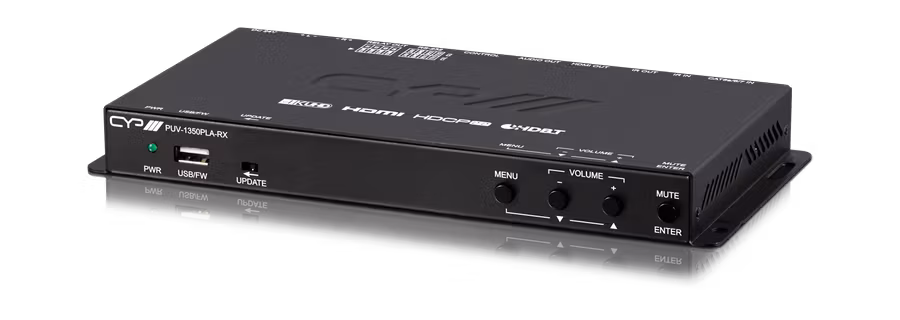

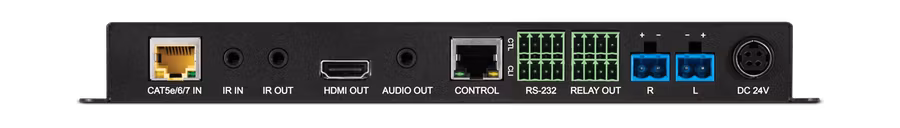

PUV-1350PLA-RX

Inputs
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x IP Control]
1x Phoenix (4 pin) [1x RS-232 local control]
1x Phoenix (4 pin) [1x RS-232 HDBaseT pathway]
Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB Type A [1x USB data Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
4x Phoenix (2 pin) [4x Contact Closure Relay Outputs]
2x Phoenix (2 pin) [1x Speaker Level Stereo Output]
PSU:
24V/3.75A
Dimensions
231mm [W] x 108mm [D] x 25mm [H]
Net Weight
680g

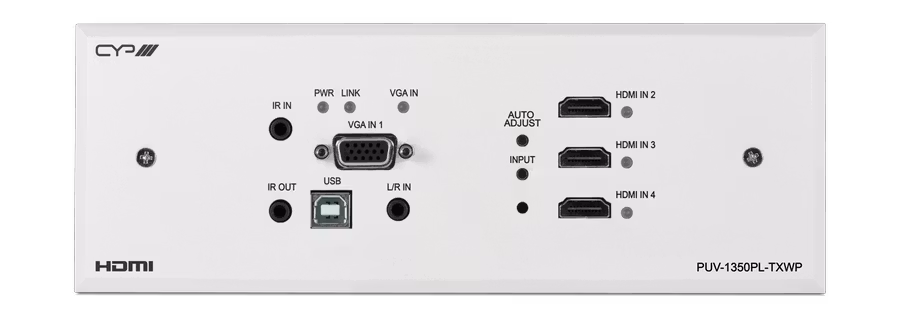

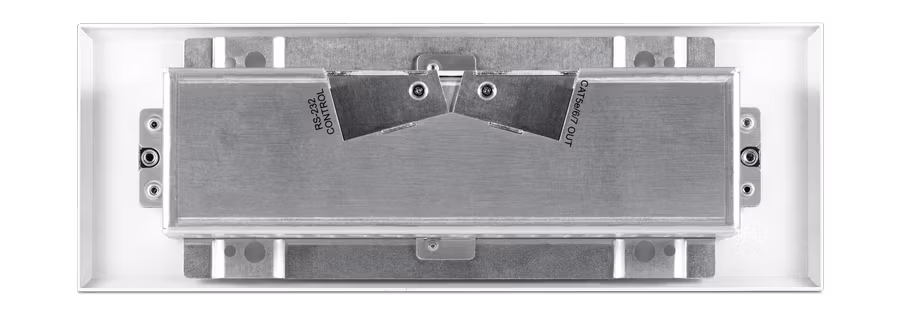

PUV-1350PL-TXWP

Inputs
3x HDMI [3x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA RGBHV]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x USB Type B [1x USB data Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x RJ45 [1x RS-232 Propriety Data]
POE PSU:
PoH
Dimensions
225mm [W] x 81mm [D] x 46mm [H]
Net Weight
350g

CR-TG2

Outputs
1x RJ45 [1x Trigger Out IR Propriety Data]
Dimensions
70mm [W] x 77mm [D] x 49mm [H]
Net Weight
110g


Total Gross Weight
2740g
