HDMI + VGA Wallplate sändare. PoH, LAN 100 meter

Logga in för att se priser och lagerstatus.

PUV-1630TXWP

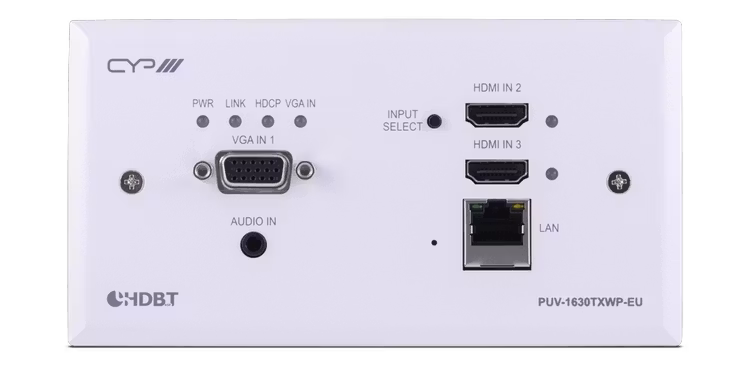

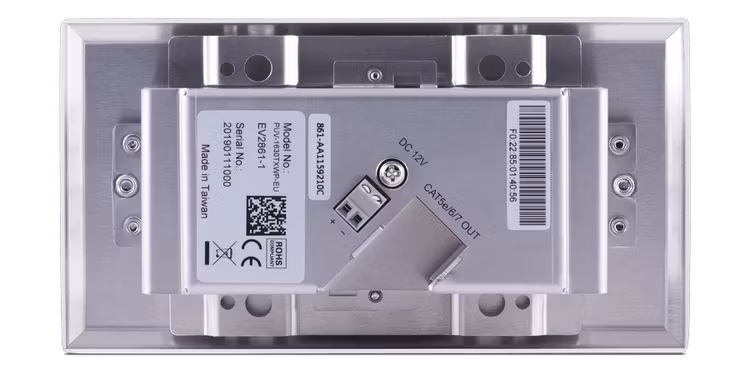

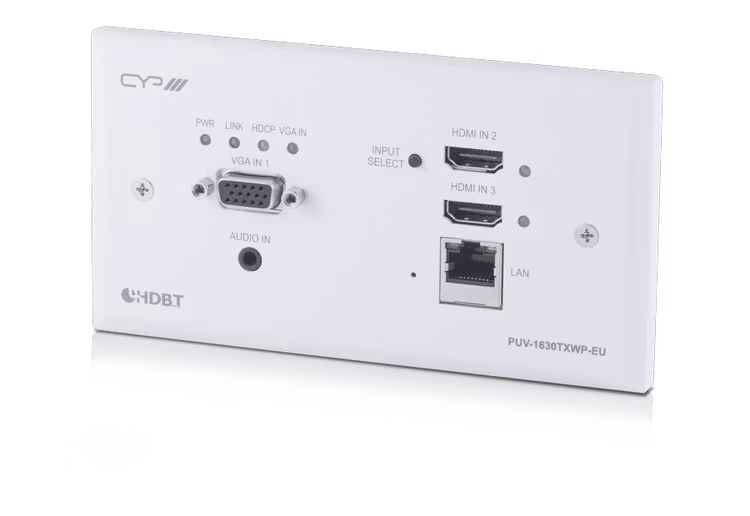

PUV-1630TXWP är en sändare som är tänkt att monteras på vägg.


The PUV-1630TXWP Transmitter is a 2 x HDMI, 1 x VGA switch which allows uncompressed HDMI and VGA signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of analogue audio em-bedding and a LAN connection over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres to a compatible PUV-1600 Series Receiver. When a device is connected to the PUV-1630TXWP, CEC control can be applied to 'power up' the connected display and select the correct HDMI input channel (programmed via the WebGUI).


This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user 'hands free' control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4KUHD signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible PUV-1600 series receiver.


Features:

HDBaseT: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT)
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 Compliant
2 x HDMI Input
1 x VGA Input with 3.5mm mini-jack analogue audio input
Automatic conversion of 4K @ 50/60Hz HDMI sources to 4K@30Hz (4:4:4 8-Bit) for transmission over HDBaseT
Supports VGA input resolutions up to WUXGA (RGB)
PoH (Power over HDBaseT) Support
Auto Switching
CEC Control
Front panel push button control
Front panel LED's to indicate Input Selection, link status and power

Specifications:

Inputs:
2x HDMI [2x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA RGBHV]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x RJ45 [1x LAN Serving]


Outputs:
1x RJ45 [1x HDBaseT HDMI & Propriety Data]


POE PSU:
PoH
Dimensions:
152mm [W] x 81mm [D] x 40mm [H]
Net Weight:
260g
Gross Weight:
760g
