HDMI förlängare över Cat6, KIT, 100m, 4K, PoE, RS232

Logga in för att se priser och lagerstatus.

PU-507-KIT

CYP/// PU-507 skickar HDMI, IR, RS232, Ethernet och ström till mottagaren över EN Cat6 kabel.


Baserat på HDBaseT­™ teknik!


Maxavstånd vid rätt kablar och bra kontaktering är 80m över Cat5e och 100m över Cat6.


En riktig värsting för dig som vill skicka HDMI över långa sträckor.

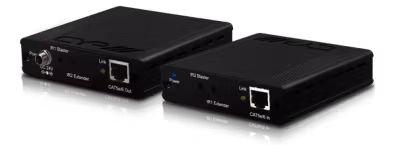

The PU-507-KIT allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.


Features

v1.4 HDMI with 3D, 4k - 2k support.

HDCP & DVI compliant.

Supports HDCP repeating and CEC functions.

Uncompressed data transfer over single CAT cable (100m - CAT6: 80m - CAT5e).

Uncompressed video 1080p, 60Hz, 48bits

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD.

5Play™ convergence: HDMI, LAN, POE & Control (IR & RS232).

Supports 3D signals.


Specification:
Inputs:

Receiver:

1x RJ45 [1x HDMI & Propriety Data],

1x Stereo mini-jack [1x Infra Red Receiver].


Transmitter:

1x HDMI [1x HDMI Uncompressed AV and Data],

1x 9pin Dsub [1x RS-232 Data],

1x Stereo mini-jack [1x Infra Red Emitter],

1x RJ45 [1x Ethernet (I/O) IP]


Outputs:

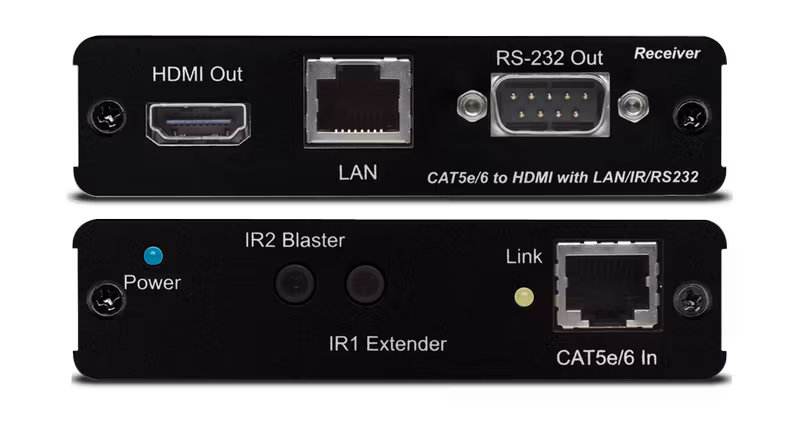

Receiver:

1x HDMI [1x HDMI Uncompressed AV and Data],

1x 9pin Dsub [1x RS-232 Data],

1x Stereo mini-jack [1x Infra Red Receiver].


Transmitter:

1x RJ45 [1x HDMI & Propriety Data],

1x Stereo mini-jack [1x Infra Red Emitter],

1x RJ45 [1x Ethernet (I/O) IP]


Power: TX only: 24V/1A, DC (US/EU standards, CE/FCC/UL certified)

Dimensions:

Receiver: 105mm (W) x 110mm (D) x 26mm (H).

Transmitter: 105mm (W) x 115mm (D) x 26mm (H)


Gross Weight: 1060g (both)

Net. Weight:

Receiver: 260g.

Transmitter: 540g
