HDMI Extender, endast mottagare, HDBaseT, PoE

Logga in för att se priser och lagerstatus.

500451-PoE-RX

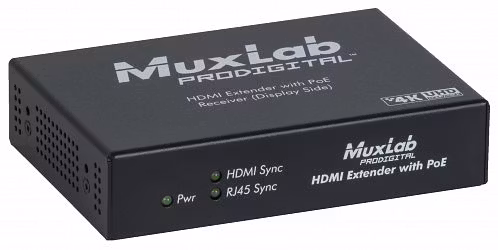

Muxlab 500451-PoE-RX är en mottagare för point-to-point HDMI distribution.


Den har möjlighet att strömförsörjas genom PoE vilket betyder att man själv kan välja om man vill strömförsörja mottagaren på plats eller genom nätverkskabeln från sändaren.

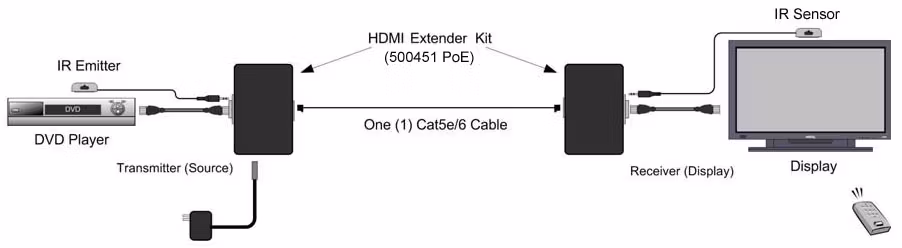

The HDMI Extender Kit (500451-PoE) allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) or 4K/60 (4:2:0) resolutions, or 230 ft (70 m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. For ease of cabling the extender kit features PoE (PD), including PoC, on both the transmitter and receiver. This kit comes with one (1) transmitter, one (1) receiver, one (1) IR Emitter, and one (1) IR sensor.

Features


Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
Supports Bi-directional IR pass through
Supports all digital audio modes
PoE (PD) & PoC on both the transmitter and receiver
Includes IR emitter and IR sensor (carrier-wave)
Compatible with 500451 (non PoE version)
