HDMI 8x8 Matrix växel, 4 HDMI + 4 HDBT, PoE,

Logga in för att se priser och lagerstatus.


Här har vi en HDMI matris med 8 ingångar och 4 HDMI utgångar + 4 HDBT utgångar som alla kan jobba simultant och individuellt från varandra.

Lämpliga mottagare är:
500451-RX HDMI Mono Extender Mottagare med HDBT, UHD-4K och IR, 70m
500454-RX HDMI / RS232 mottagare 70m
500454-PoE-RX HDMI / RS232 mottagare 70m med PoE

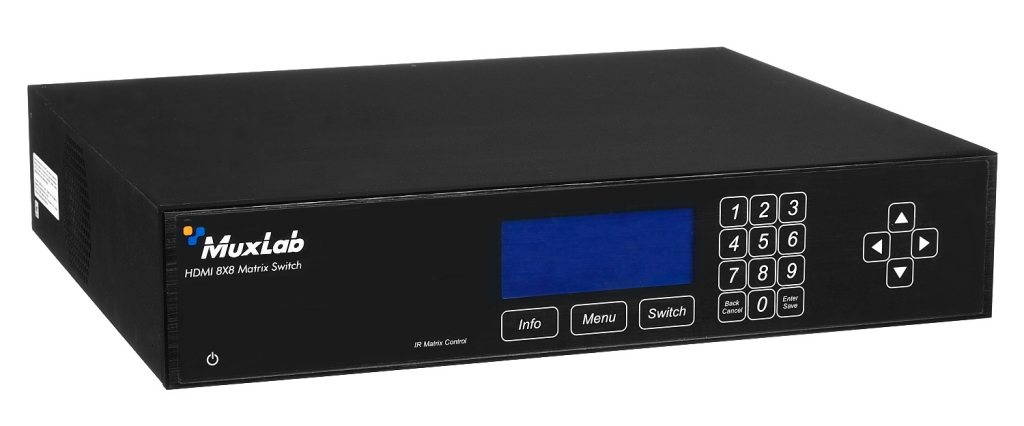

The MuxLab HDMI 8x8 Matrix Switch, HDBT, PoE allows 8 HDMI sources to be switched/distributed to up to 8 remote displays via unshielded twisted pair (UTP) or shielded twisted pair (STP) cables for cost-efficient connectivity.

Remote displays can be connected up to 230 feet (70 meters) @ 1080p Deep Color via Cat 5e/6 UTP/STP cables.

The Matrix Switch works in conjunction with MuxLab’s HDMI Receiver
(500451-RX, 500454-RX or 500454-POE-RX).

Single modular RJ45 jacks
HDMI 3D Support
HDMI input supported with resolution up to 1080p
Web interface
Firmware is field upgradable
Device control over HTTP protocol
UTP / STP extension for 1080p Deep Color up to 230 feet ( 70 meters ) via Cat 5e / 6 UTP / STP cables
Seamless integration with MuxLab's HDMI Receiver ( 500451-RX, 500454-RX or 500454-POE-RX ) Note: The 500451-RX doesn't support RS-232 and PoE functionality
HDBaseT supported output
Configurable EDID CDC control
Touch pad on front panel for manual control
2U rackmount unit
