HDMI/USB till HDBaseT 2.0 Sändare, 35m, 4K, HDCP2,2, PoH, USB

Logga in för att se priser och lagerstatus.

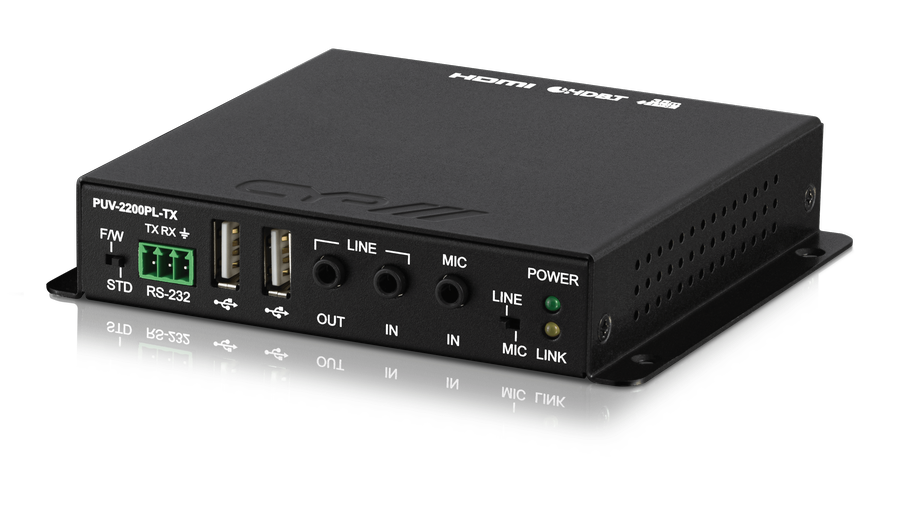

PUV-2200PL-TX


The PUV-2200PL-TX HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This transmitter also features analogue audio input/output and mic input for flexible audio options.

Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.

All the benefits of HDBaseT 2 but in a lite version, more cost effective at a shorter CAT cable distance.

Features:

  • HDBaseT 2.0 compatible
  • Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
  • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
  • HDMI 2.0 and DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
  • Supports 16-bit Deep Color up to 1080p@60Hz
  • Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Specifications:

Inputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB 3 Type B [1x USB Power & Data]
1x Phoenix (4 pin) [1x Shared IR I/O]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Microphone]

Outputs
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x Phoenix (3 pin) [1x RS-232]
2x USB Type A [2x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]

PSU:
24V/2.7A
Dimensions
128mm [W] x 108mm [D] x 25mm [H]
Net Weight
380g
Gross Weight
570g
