500816
Muxlab 500816 är en 8 knappars kontrollpanel för styrning av 3 RS-232, 1 RS-485, 3 IR och 2 relä.
Kontrollpanelen är direkt kompatibel med följande produkter:
500480
500470

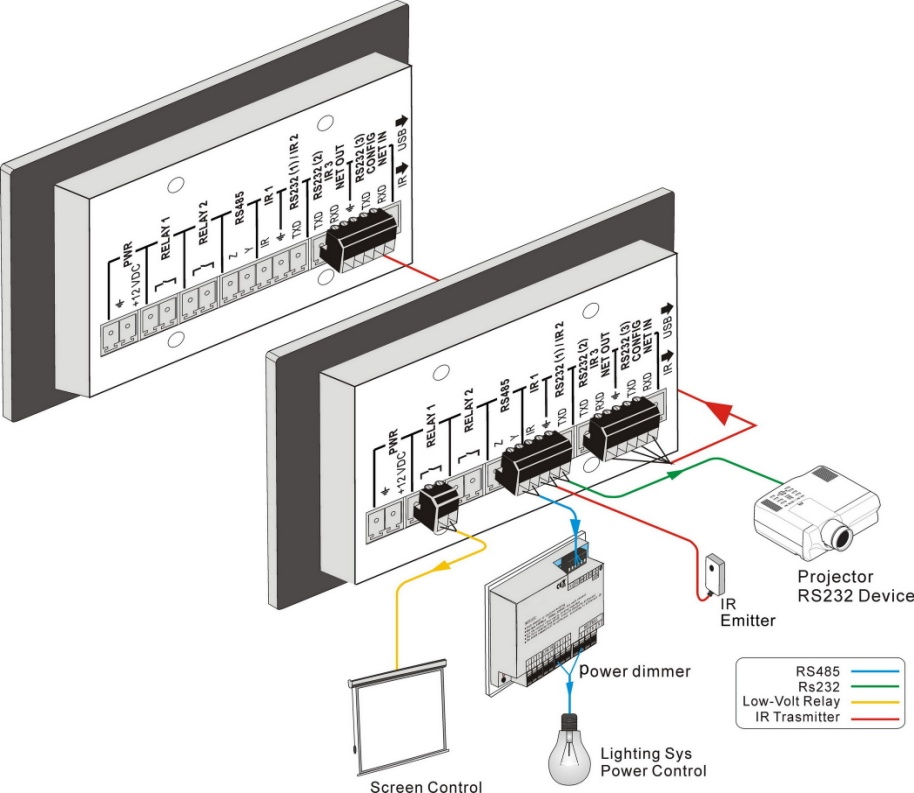

The 8 Button RS232/IR Control Panel is a versatile wall or table-top mounted control panel for MuxLab AV devices and third party products. Each button is programmable and works either individually or as part of a group. The unit supports three (3) RS232, one (1) RS485, three (3) Infrared, and two (2) Relay for control of end devices. Units may be chained together to form larger systems. The 8 Button RS232/IR Control Panel can control MuxLab products, as well as third party devices such as projectors and projector screens, displays, AV sources and other similar devices.
Features
8 button control panel
Buttons can be individually programmed
Units can be chained to form larger systems
Control end devices via RS232, RS485, IR & Relay
Programmable through RS232 or mini USB port, via Control Panel PC Software
Buttons are backlit and support customizable labels
May be wall or table top mounted
Supports firmware updates via mini USB port
Features
8 button control panel
Buttons can be individually programmed
Units can be chained to form larger systems
Control end devices via RS232, RS485, IR & Relay
Programmable through RS232 or mini USB port, via Control Panel PC Software
Buttons are backlit and support customizable labels
May be wall or table top mounted
Supports firmware updates via mini USB port
