4K@30Hz Videovägg över IP, PoE, Kit

Logga in för att se priser och lagerstatus.

500759

Muxlab 500759 är ett kitt för att skicka och ta emot HDMI 4K UHD över ett nätverk och presentera det på en eller flera skärmar.

Kittet är designat att arbeta med en PoE ethernet switch. Om man inte har en PoE switch så krävs det separata strömförsörjare (500993).

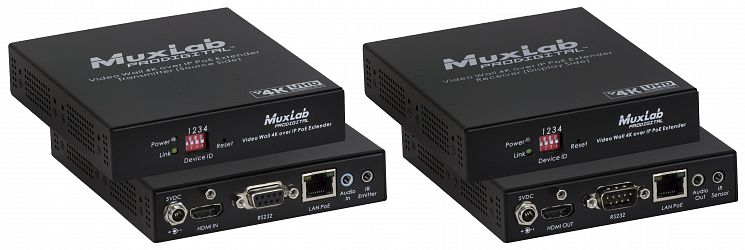

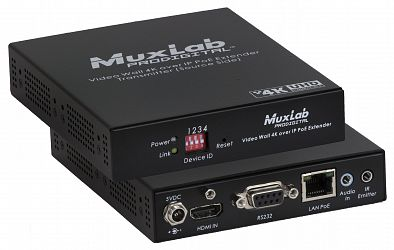

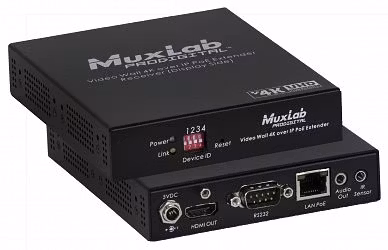

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch. The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.

The MuxLab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.

Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.

Features


Configure a Video Wall array with 100’s of displays, depending on network bandwidth
Supports up to 4K @ 30Hz and 1080p @ 60Hz
Visually lossless video (1 frame latency)
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Transmission up to 330ft (100m) over Cat5e/6
Supports audio insert (TX) & audio extract (RX)
Supports RS232 and IR transmission for remote control
PoE powered
Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
