500087
S/PDIF ( Koax ) eller Digitalt optiskt ( Toslink ) till S/PDIF ( Koax ) eller Digitalt optiskt ( Toslink ) omvandlare. Helt enkelt skicka in en Optisk eller Koax ljud signal och plocka ut den andra.Vi har en tidigare produkt som gör samma sak men som saknar möjligheten att nedkonvertera 5.1 / 7.1 strömmar. Denna skall dock klara av detta.

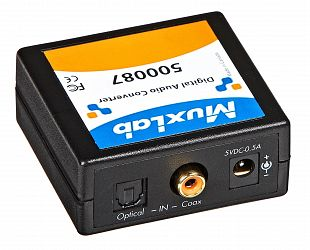

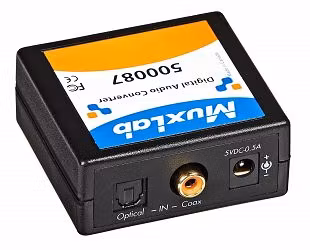

The MuxLab Digital Audio Converter (500087) is a versatile digital audio standards converter*.
The product allows one (1) Digital Coax (S/PDIF), or Digital Optical (TOSLINK) source to be connected to a Digital Audio Receiver supporting either Digital Coax (S/PDIF), or Digital Optical (TOSLINK) inputs.
The converter supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolby® Digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby Digital® 5.1, DTS, and Dolby® True HD).
* For a Digital Audio Standards Extender and Converter over Cat5e/6 to a distance of up to 500ft / 150m, please see part number: 500086
Converts Digital Optical (TOSlink) to Digital Coax (S/PDIF)
Converts Digital Coax (S/PDIF) to Digital Optical (TOSlink)
Outputs simultaneous regardless of input signal type
Sample rate: up to 96kHz
Bit rate: 24bit S/PDIF compressed and uncompressed bit stream
Input: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink)
Output: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink) - simultaneous
Switch for selecting between S/PDIF and TOSlink inputs
1m Digital Optical (TOSlink) cable included
Dimensions: 2.4" x 2.25" x 1" (61 x 57 x 25mm)
Weight: 1lb / 0.45kg
Manufacturers warranty: 2 years
Power supply: 110-240V / 5V DC 0.5A
The product allows one (1) Digital Coax (S/PDIF), or Digital Optical (TOSLINK) source to be connected to a Digital Audio Receiver supporting either Digital Coax (S/PDIF), or Digital Optical (TOSLINK) inputs.
The converter supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolby® Digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby Digital® 5.1, DTS, and Dolby® True HD).
* For a Digital Audio Standards Extender and Converter over Cat5e/6 to a distance of up to 500ft / 150m, please see part number: 500086
Converts Digital Optical (TOSlink) to Digital Coax (S/PDIF)
Converts Digital Coax (S/PDIF) to Digital Optical (TOSlink)
Outputs simultaneous regardless of input signal type
Sample rate: up to 96kHz
Bit rate: 24bit S/PDIF compressed and uncompressed bit stream
Input: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink)
Output: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink) - simultaneous
Switch for selecting between S/PDIF and TOSlink inputs
1m Digital Optical (TOSlink) cable included
Dimensions: 2.4" x 2.25" x 1" (61 x 57 x 25mm)
Weight: 1lb / 0.45kg
Manufacturers warranty: 2 years
Power supply: 110-240V / 5V DC 0.5A
