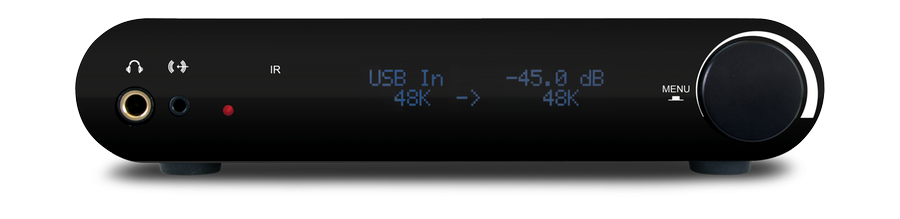

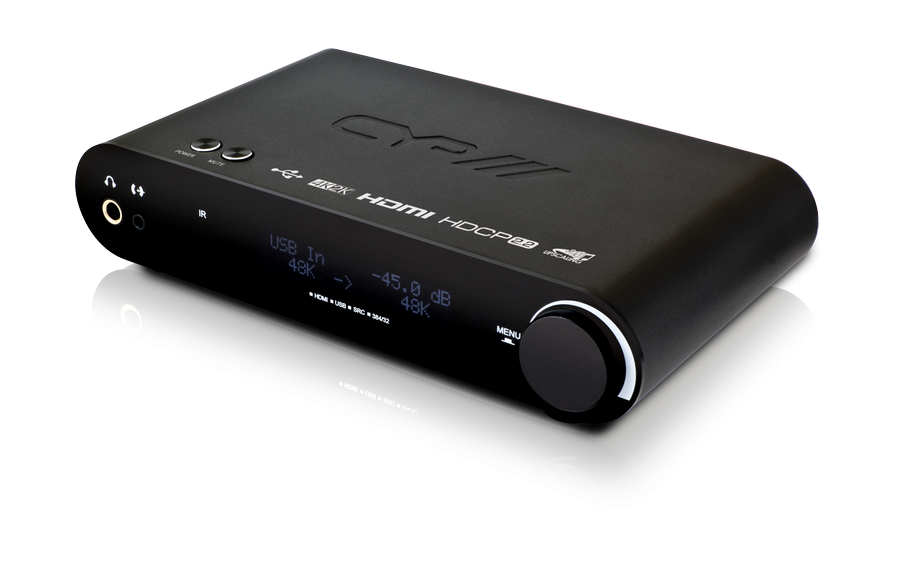

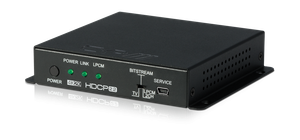

AU-D250-4K22
?The AU-D250-4K22 is designed to integrate and convert both analogue and digital audio signals into any AV system. This device has an in-built sample rate converter which can upscale audio signals between 44.1kHz to 192kHz (24 bit). With 4K resolution support, HDMI2.0 and HDCP2.2 compliance, the AU-D250-4K22 also enables switching of up to 4 HDMI sources to a single HDMI output, and allows the user to embed or de-embed audio within the HDMI signal path. The AU-D250 not only provides a truly enhanced listening experience, but also the flexibility to manage all audio signals in your AV system.
HDMI2.0, HDCP 2.2 and DVI compatible
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Audio format conversion
Professional analogue signal handling and conversion between balanced and unbalanced output signals
Easy integration of USB, HDMI, L/R Stereo, Digital Optical and Coaxial sources onto speakers or headphones (6.35mm Jack)
HDMI bypass function including the ability to embed and de-embed audio
Analogue to Digital conversion (ADC)
Digital to Analogue conversion (DAC)
Digital inputs can be SRC to 44.1, 48, 88.2, 96, 176.4, 192 and 384kHz via DSP Engine
Supports Analogue L/R input/output, XLR, and 6.3mm headphone outputs
HDMI Audio output can either output the incoming embedded HDMI (Bypass Mode) or insert the selected audio signal (Ext Audio Mode)
Supplied with IR Remote Control
Features
HDMI2.0, HDCP 2.2 and DVI compatible
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Audio format conversion
Professional analogue signal handling and conversion between balanced and unbalanced output signals
Easy integration of USB, HDMI, L/R Stereo, Digital Optical and Coaxial sources onto speakers or headphones (6.35mm Jack)
HDMI bypass function including the ability to embed and de-embed audio
Analogue to Digital conversion (ADC)
Digital to Analogue conversion (DAC)
Digital inputs can be SRC to 44.1, 48, 88.2, 96, 176.4, 192 and 384kHz via DSP Engine
Supports Analogue L/R input/output, XLR, and 6.3mm headphone outputs
HDMI Audio output can either output the incoming embedded HDMI (Bypass Mode) or insert the selected audio signal (Ext Audio Mode)
Supplied with IR Remote Control
Specification

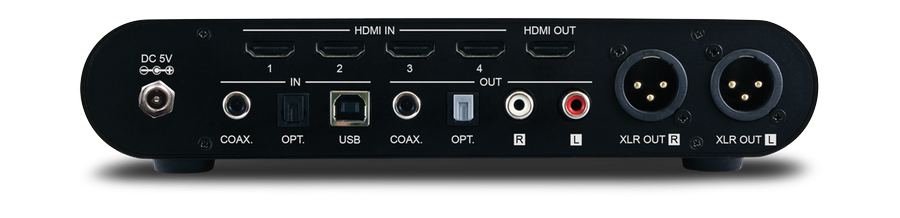

| Input: | 1x 3.5mm Stereo mini-jack [1x Line in Stereo(L/R)] 4x HDMI [4x HDMI 2.0 Uncompressed AV and Data] 1x Toslink [1x Optical 2 Channel LPCM] 1x RCA [1x Coaxial 2 Channel LPCM] 1x USB Type B [1x USB (2.0) Audio] |
| Output: | 1x 3.5mm Stereo mini-jack [1x Headphone out Stereo(L/R)] 1x HDMI [1x HDMi 2.0 Uncompressed AV and Data] 1x RCA [1x Coaxial 2 Channel LPCM] 1x Toslink [1x Optical 2 Channel LPCM] 2x RCA [1x Analogue audio Stereo (L/R)] 2x XLR [1x Analogue Stereo (Balanced)] |
| : | |
| PSU: | 5V/3A |
| Dimensions: | 154mm [W] x 223mm [D] x 48mm [H] |
| Net. Weight: | 870g |
| Gross Weight: | 1480g |
