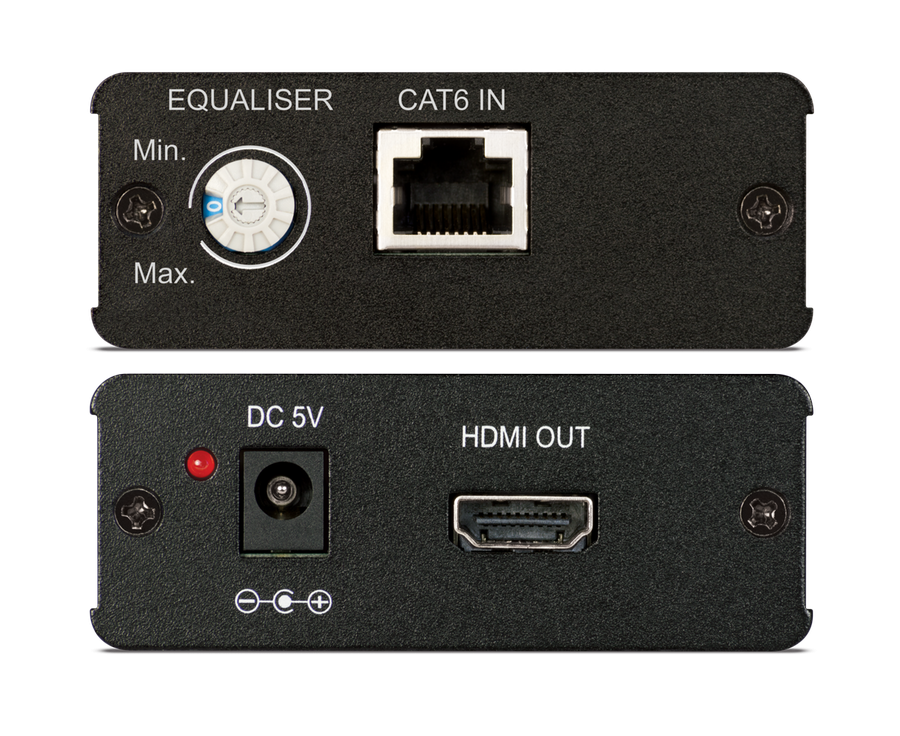

PU-1107RX HDMI 1.3 över singel CAT6 Mottagare

Logga in för att se priser och lagerstatus.


PU-1107 använder EN Cat6 kabel för att skicka HDMI.


PU-1107RX är en mottagare som används ihop med PU-Q1H8CS som är en splitter som kan skicka ut 8 st HDMI-signaler över varsin Cat-kabel.

Pure digital v1.3 HDMI over single CAT6 Extender Set with Repeater function The PU-1107-KIT is an uncompressed Pure Digital solution to extend HDMI signals via a Single CAT6 cable. The PU-1107-KIT extender set can be used with the PU-1107EX Repeater to extend the HDMI signal over single CAT6 up to a total of 80m, 40m either side of the repeater.

v1.3 HDMI, HDCP 1.1 & DVI 1.0 compliant.

HDMI over a single CAT6 (pure digital transmission) .

Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission.

Resolution supported: 480i - 1080p 50/60, 1080p 24, VGA - WUXGA.

Supports Deep Color (10 & 12 bit).

Supports xvYCC.

Supports CEC bypass.

Supports 3D signals



InputsTransmitter: 1 x HDMI [HDMI Uncompressed AV and Data].

Receiver: 1 x RJ45 [CAT (HDMI) Propriety Data].

OutputsTransmitter: 1 x RJ45 [CAT6 Propriety Data].

Receiver: 1 x HDMI (HDMI Uncompressed AV and Data).

PowerTransmitter: 5v/1A. Receiver: 5V/1.2A, DC

(US/EU standards, CE/FCC/UL certified)

DimensionsTransmitter: 80mm (W) x 102mm (D) x 32mm (H)

Receiver: 79mm (W) x 75mm (D) x 30mm (H)

Gross WeightTransmitter: 380g. Receiver: 380g

Net. WeightTransmitter: 300g. Receiver: 280g
