HDBaseT sändare, 4K@60Hz, HDR, PoH, AVLC, OAR, 100Mbit/s data

Logga in för att se priser och lagerstatus.

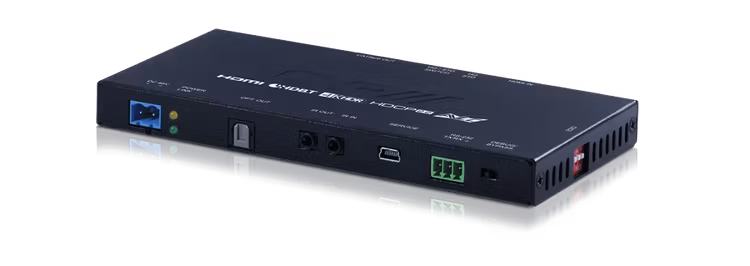

PUV-1830LTX-AVLC

Sändaren PUV-1830LTX-AVLC gör det möjligt att skicka video, upp till och med 4K UHD med 10/12-bitdjup och HDR, med hjälp av den nya AVLC (Adaptive Visually Lossless Compression) tekniken, tillsammans med HD-ljud, IR båda hållen, RS-232 och Power over HDBaseT upp till 35 meter, dessutom klarar den att skicka tillbaka en optisk signal till sändarplatsen. Detta möjliggör integration av till exempel en tv:s inbyggda ljud i ett multirum-system placerat i ett centralt rack. Dessutom kan den överföra 100Mbit/s datatrafik mellan sändare och mottagare.

Full 4K@60Hz, 4:4:4, HDR 18Gbit/s kan skickas upp till 70m med en Cat6A/Cat7.

FullHD samt 4K upp till 4:2:0 utan HDR kan skickas upp till 100 m i samma kabel.


The new PUV-1830TX-AVLC Transmitter enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals up to a distance of 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 70m. This unit also features OAR (Optical Audio Return) allowing the user to extract Optical Audio transmitted from the HDBaseT Receiver.

Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be extended to a compatible receiver. The result is a perfect 4K 6G  visually lossless image delivered to the display screen.

Features:


  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)
  • Supports OAR (Optical Audio Return)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals


Specifications:

Inputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x RS-232]
1x RJ45 [1x LAN Serving]
1x USB Mini B [1x Service Port Propriety Data]
Outputs
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
POE PSU:
PoH
Dimensions
80mm [W] x 165mm [D] x 20mm [H]
Net Weight
335g
Gross Weight
2000g


hdAnvänds ihop med mottagaren som finns nedanför.
