HDBaseT Kit, 4K, HDR, PoH, AVLC, 100m

Logga in för att se priser och lagerstatus.

PUV-1810KIT-AVLC

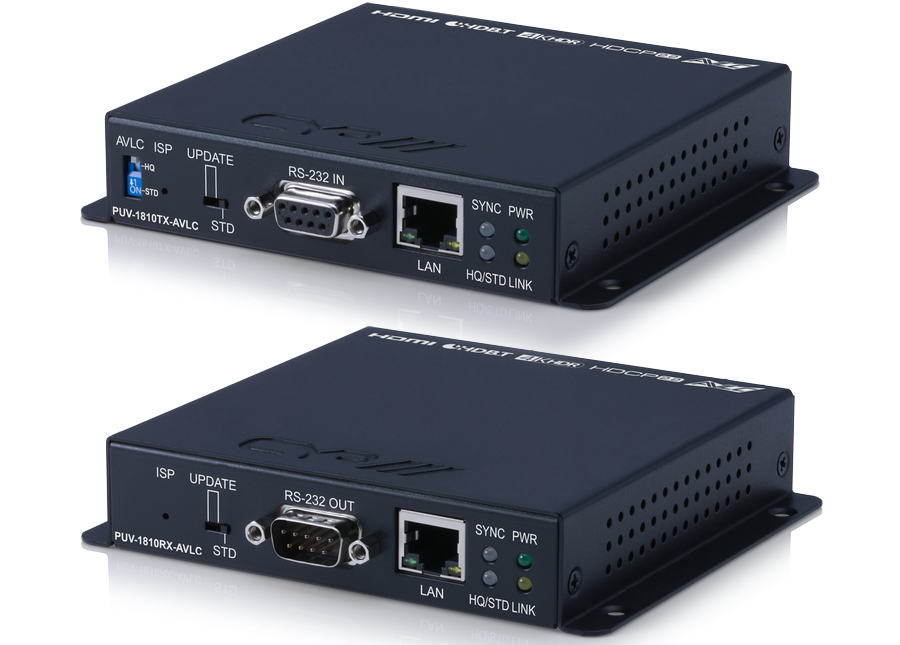

Det här är ett komplett kit bestående av en PUV-1810TX-AVLC och en PUV-1810RX-AVLC som kan skicka upp till 4K [email protected] med 4:4:4 color sampling upp till 100 meter.

Med den nya AVLC (Adaptive Visually Lossless Compression) tekniken så lyckas CYP/// inte bara få med 4K upplösning utan får även med HDR, HD-ljud, 2-vägs IR och RS-232 tillsammans med PoH ( Power over HDBaseT ) på samma gång.


?

Data taken from the transmitter.


Features:


HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
AVLC (Adaptive Visually Lossless Compression)
AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Supports Deep Colour input and output up to 12-bit
Supports CEC Bypass
4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports 3D signals

Specifications:


Input:1x HDMI [1x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x LAN Serving]
Output:1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU:48V/0.83A
Dimensions:116mm [W] x 128mm [D] x 25mm [H]
Net. Weight:360g
Gross Weight:1310g
