CR-TG2 är ett enkelt men effektivt sätt att styra kompatibla kontroll system med. Med 8 knappar som triggers för macros eller enkla funktioner.

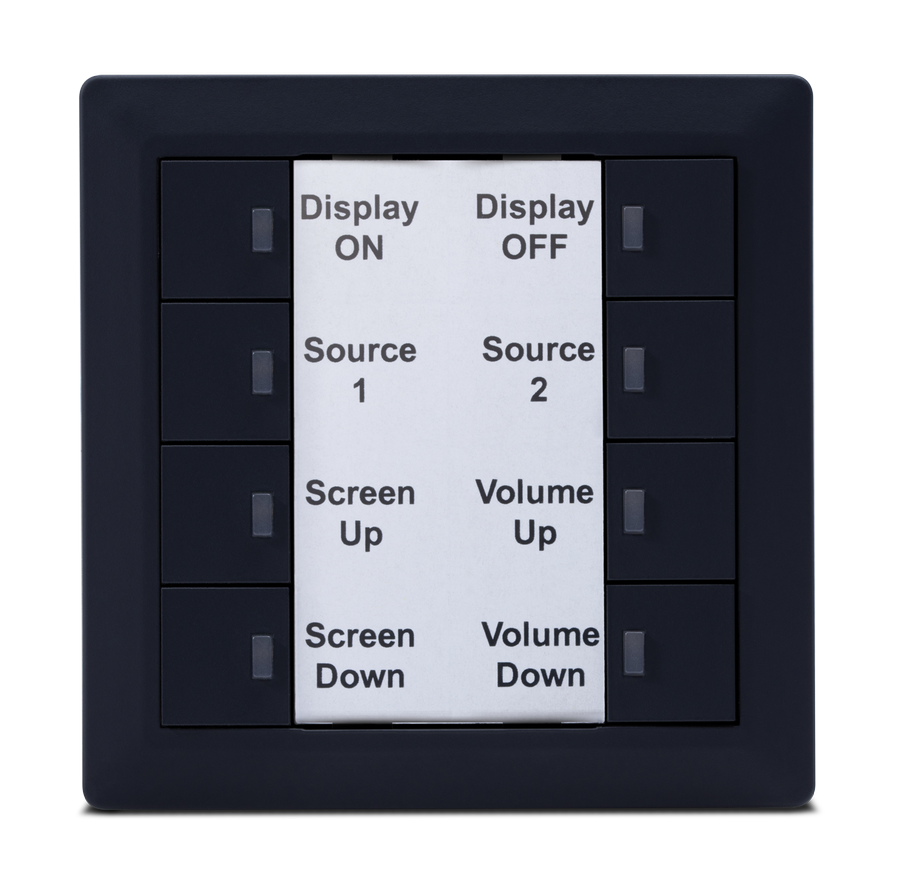

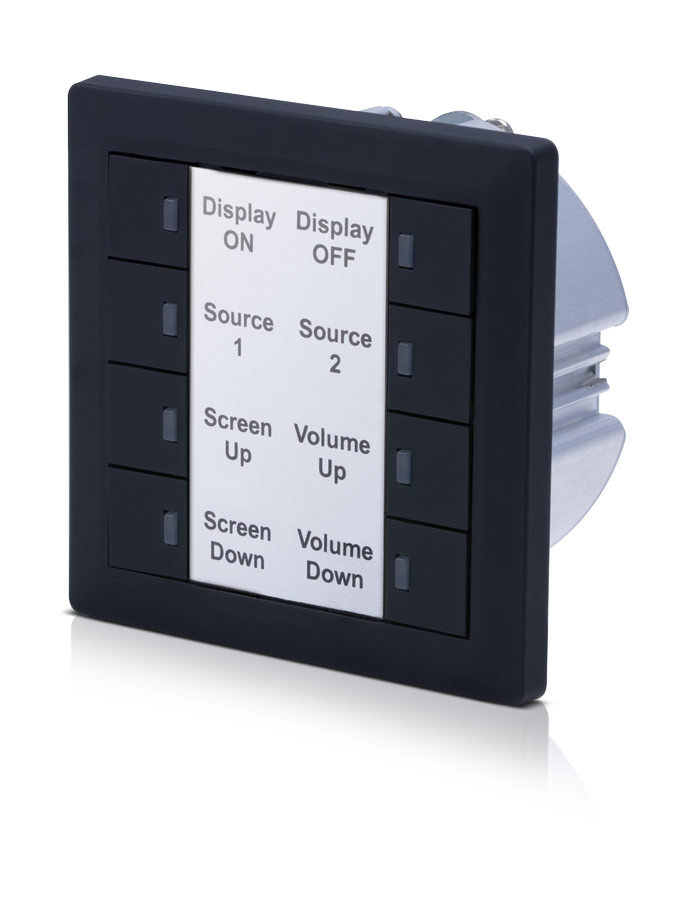

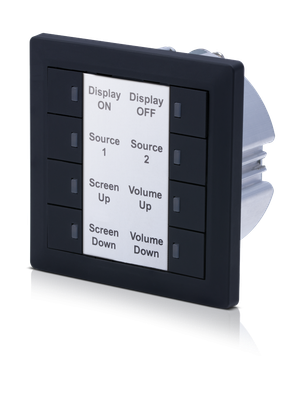

The CR-TG2 Control Trigger Keypad is designed to be a simple and effective alternative for more complex control systems. This keypad features a set of 8 buttons which directly activate 8 trigger outputs which can be attached to the compatible system. The CR-TG2 forms part of the PUV-1350PL-Kit together with the PUV-1350PL-TXWP and the PUV-1350PLA-RX.
The keypad’s connection cable allows the installer to extend system control to locations that are more convenient for user, such as a Meeting Room Tables, Lecterns, Podiums, etc. The CR-TG2's understated appearance makes this keypad an elegant and decorative addition to any professional AV installation.
The CR-TG2 is also used with the PUV-1330PL-Kit (coming soon)
- 8 buttons linked directly to 8 triggers which are capable of instantly activating functions on the connected system
- Provides extended control of compatible HDBaseT kit
- No external power supply required
- Keypad can be customised to indicate control options
- Power and control signals transferred via CAT cable

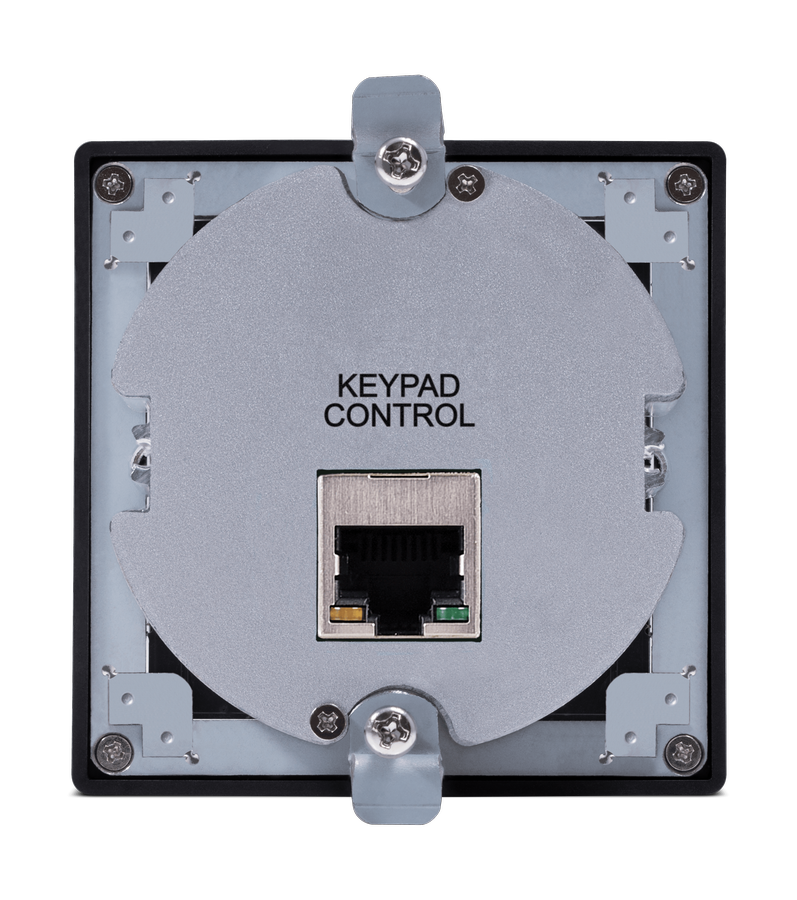

|Output:||1x RJ45 [1x Trigger Out IR Propriety Data]|
|Dimensions:||70mm [W] x 70mm [D] x 49mm [H]|
