VGA balun II PC Sidan Hona

Logga in för att se priser och lagerstatus.

500043

Här har vi en VGA balun av Hona modell som gör att man kan skicka VGA signaler upp emot 107 meter genom en enkel Cat 5e nätverkskabel.


För att få en förbindelse måste balunen användas tillsammans med en

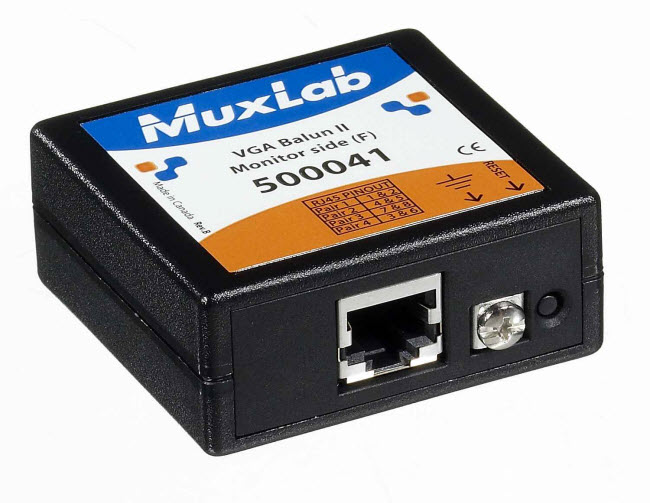

VGA Balun II Hd15F Monitor Sidan Hona eller

VGA Balun II HD15M Monitor Sidan Hane som säljs separat.


The VGA Balun II eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via one (1) 4-pair Cat 5 unshielded twisted pair (UTP) cable.

Used in pairs, the VGA Balun II allows VGA video to be transmitted up to 350ft (107m) via Cat 5 at 800 x 600 resolution. Each VGA connection requires p/n 500040 at the source and either p/n 500041 or 500042 at the display. The product features a "reset" button that may be required when using certain displays. More information may be found in the product Installation Guide.

The VGA Balun II works in conjunction with laptops, PCs, plasmas, CRT, LCD monitors and DLP projectors.

Typical applications include digital signage, boardroom systems, classroom video instruction and custom audio-video systems.

Features:
Fully supports Cat5e / 6 UTP
Use existing structured cabling system
Cost efficient versus VGA cables
Save conduit space
