Matrisväxel, LAN, Audio, 4K, HDCP2.2, 100 m

Logga in för att se priser och lagerstatus.


PUV-662-4K22 är en HDMI->HDBaseT matris med 6 HDMI ingångar, 6 HDBaseT utgångar och ett par extra HDMI utgångar för den goda sakens skull.

Med stöd för LAN, HDCP 2.2, HDMI 2.0 samt 4K2K@60Hz upplösning i en längd upp till 100 meter så är denna just nu i framkant av den tekniska utvecklingen.

PUV-662-4K22 är även utrustad med en individuell ljud växel med 4 ingångar och 8 utgångar som kan användas för att plocka ut eller lägga till ljud till utgångarna.

Styrning av matrisen kan skötas genom knapparna på fronten, IR, RS-232, Telnet eller WebGUI:t. RS-232 signaler kan även vidarebefordras genom matrisen till mottagarna.

??The PUV-662-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.'

The PUV-662-4K22 matrix incorporates an independent audio matrix with 8 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1530RX receiver to be routed back to the audio matrix.

LAN connectivity provides a 100BaseT network for smart TV's or games consoles in every zone. The matrix has a built-in pattern generator which can be used to verify the video signal on any of its 8 output ports. The Power over HDBaseT (PoH) function provides power to compatible receivers.

Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through to the receivers.

The PUV-662-4K22 is designed to be used with PUV-1530RX or PUV-1510RX receivers that can utilise the PoH capabilities of the matrix.


  • HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
  • Routes six HDMI sources to eight displays using six HDBaseT outputs and two independent HDMI outputs
  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • Supports resolutions up to 4K@60 (RGB 4:4:4) on HDMI output ports
  • Supports automatic 4K@60 RGB 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs
  • 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, and fully independent audio only zones
  • Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration
  • Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs
  • Optical Audio Return (OAR)
  • Advanced internal and external EDID management with 4 sets of configurable EDID settings
  • Internal test pattern generation for self-testing and sink device testing. (Internal test patterns up to and including 4K signals)
  • Supports HDCP repeating and CEC functions
  • Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • 2U rack mounted design

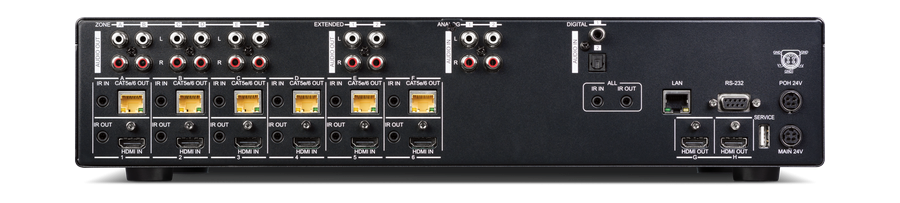

Input:6x HDMI [6x HDMI Uncompressed AV and Data]
4x RCA [2x Analogue Stereo (L/R)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]
7x 3.5mm Stereo mini-jack [7x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control / LAN Serving]
1x USB Type A [1x Service Port Propriety Data]
Output:2x HDMI [2x HDMI Uncompressed AV and Data]
6x RJ45 [6x HDBaseT HDMI & Propriety Data]
12x RCA [6x Zone - Analogue Stereo (L/R)]
4x RCA [2x Extended - Analogue Stereo (L/R)]
7x 3.5mm Stereo mini-jack [7x Infra Red Emitter]
 : :
Dimensions:316mm [W] x 438mm [D] x 96mm [H]
Net. Weight:6000g
Gross Weight:8000g
