HDMI / VGA över IP med USB, 4K, HDCP2.2, mottagare

Logga in för att se priser och lagerstatus.

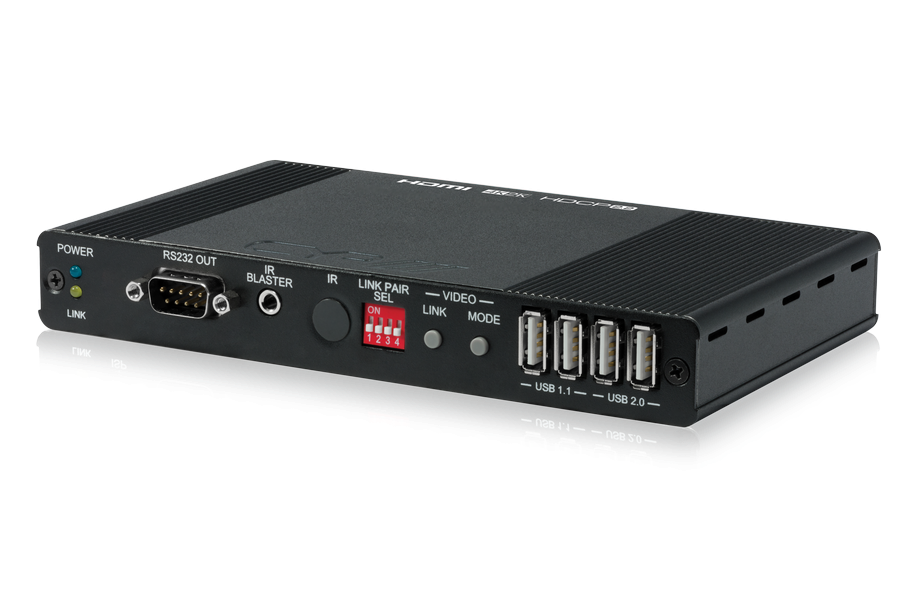

IP-6000RX är en mottagare som kan ta emot HDMI eller VGA över ett befintligt nätverk upp till 100 meter bort ( genom 1 Gigabit nätverksswitch ).

Avståndet mellan sänader och mottagare går att förlänga med vanliga nätverkswitchar.

The IP-6000RX receiver allows you to receive HDMI or VGA signals over CAT5e/6/7 network cable. This extender is multi-function receiver that supports Ultra High-Definition signals (up to 4K2K@30Hz, YUV444) for distances up to 100m. This system is perfect for both residential and commercial installation environments.

The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.

HDCP 2.2, HDMI and DVI compatible
Supports HDMI and VGA inputs and outputs
Supports video transmission over IP up to 100m
Supports HDTV resolutions up to 4K2K@30Hz (YUV444) or 4K2K@60Hz (YUV420)
Supports pass-through of HD audio formats (PCM 2CH)
Supports audio line in for audio input to the transmitter and line output to an amplifier or AV Receiver
Supports microphone input on the receiver unit
Supports USB keyboard and mouse
Control via OSD, Telnet, WebGUI, IR remote and RS-232


Input:1x RJ45 [1x IP - Encoded AV & Data stream]
1x 3.5mm Stereo mini-jack [1x Microphone]
Output:1x HDMI [1x HDMI - Uncompressed AV and Data]
1x 15pin Dsub [1x VGA - RGBHV]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
2x USB Type A [2x USB 2.0 - Propriety Data]
2x USB Type A [2x USB 1.1 Propriety Data]
Dimensions:182mm [W] x 280mm [D] x 71mm [H]
Net. Weight:865g
Gross Weight:1020g
