HDMI 8x8 Matris växel

Logga in för att se priser och lagerstatus.

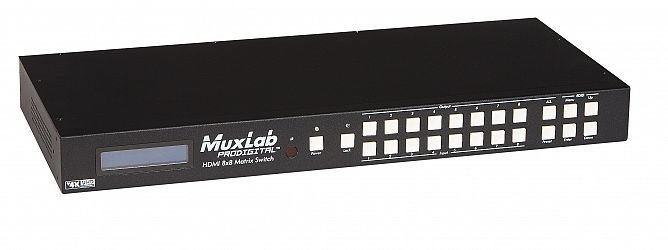

Muxlab 500441 är en 8x8 matris växel för HDMI som stödjer upplösningar upp till och med 4K-UHD ( 3840x2160 ).

Samtliga HDMI kontakter har ett hål för att fästa en låsmekanism på kablarna. ( medföljer ej )

The HDMI 8×8 Matrix, UHD-4K connects eight HDMI sources to eight displays. This matrix provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting independent EDID control. It works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

HDMI V1.4 supports: 4K x 2K @30Hz, 1080P @120Hz, and 1080P 3D @60Hz.
Supports color depth of 48, 36, 30, 24 bit.
Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
Allows any source to be displayed on multiple displays at the same time.
Allows any HDMI display to view any HDMI source at any time.
Input ports support independent EDID.
Supports IR matrix and Digital Audio output.
Supports pushbutton, IR, RS232 and TCP/IP Control.
Front panel LCD display for status feedback.
HDMI connectors with Locking nuts
