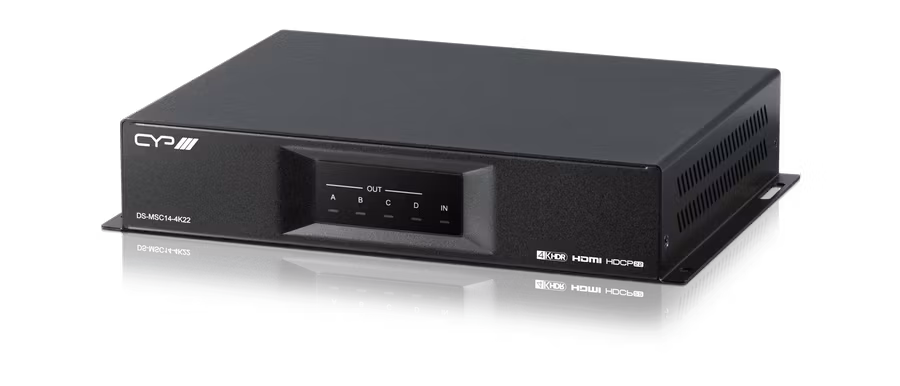

DS-MSC14-4K22
DS-MSC14-4K22 står för Digital Signage Multi-Screen Controller 1 to 4. Med stöd för 4K och HDCP 2.2
Vad har man en sådan till då?
Den kan används när man vill visa en bild över flera skärmar.
Ni har kanske sett en vägg med flera skärmar som visar en bild när ni varit på någon mässa eller liknande.
Vid dessa tillfällen har man använt sig av en Multi-Screen Controller så som denna.
Med denna så kan man köra 4K material från 1 källa upp till 4 skärmar.
The DS-MSC14-4K22 has been designed to provide an easier and more convenient way to create and deploy video wall installations.
Delivering complete scalability, and capable of driving up to four 1080p displays, all from a single 4K UHD source. For larger installations multiple DS-MSC14-4K22 units can be combined to create up an 8x8 configuration.
Each of the 4 outputs support 1080p@60Hz to generate a true 4K video wall. Built-in advanced EDID management, user configurations and advanced HDCP processing allows the DS-MSC14-4K22 to suit almost any installation scenario. Control is via RS-232, Telnet IP and PC application which allow full control of the DS-MSC14-4K22 from adjusting the bezel correction to pre-set video wall layouts.
Features:
Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
Dedicated PC application for easy control of the unit
The DS-MSC14-4K22 can be combined together using a HDMI splitter allowing the creation of larger video walls.
The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our PC control software which can be found on the downloads tab of the website.
Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts.
HDMI 2.0, HDCP 2.2 and DVI compliant
Specification:
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x IP Control]
1x 9pin Dsub [1x RS-232 Data]
1x USB Type A [1x Service Port Propriety Data]
Outputs
4x HDMI [4x HDMI Uncompressed AV and Data]
Power: 24V/1.25A
Dimensions: 231mm [W] x 174mm [D] x 44mm [H]
Net. Weight: 980g
Gross Weight: 1500g
